Door weatherstrip front for BMW 3 Series E36 323i (1998)

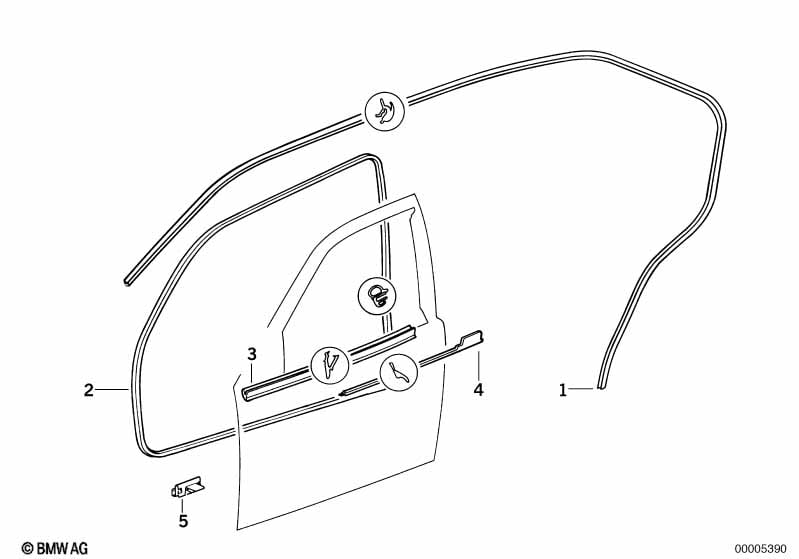

This Door weatherstrip front technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 323i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Left roof frame gasket | 1 | 51718174757 | $44.73 | Shop at ECS Tuning | |||||
| 01 | Right roof frame gasket | 1 | 51718174758 | $44.73 | Shop at ECS Tuning | |||||
| 02 | Edge protection front | 2 | 51728196289 | $73.16 | Shop at ECS Tuning | |||||
| 03 | Inner left window channel cover | 1 | 51218174763 | $18.00 | Shop at ECS Tuning | |||||
| 03 | Inner right window channel cover | 1 | 51218174764 | $18.00 | Shop at ECS Tuning | |||||
| 04 | Outer weatherstrip, left | 1 | 51211960647 | $32.85 | Shop at ECS Tuning | |||||
| 04 | Outer weatherstrip, right | 1 | 51211960648 | $32.85 | Shop at ECS Tuning | |||||
| 05 | Clamp | X | 51211977747 | $1.11 | Shop at ECS Tuning |
