Door weatherstrip rear for BMW 3 Series E36 316i (1994)

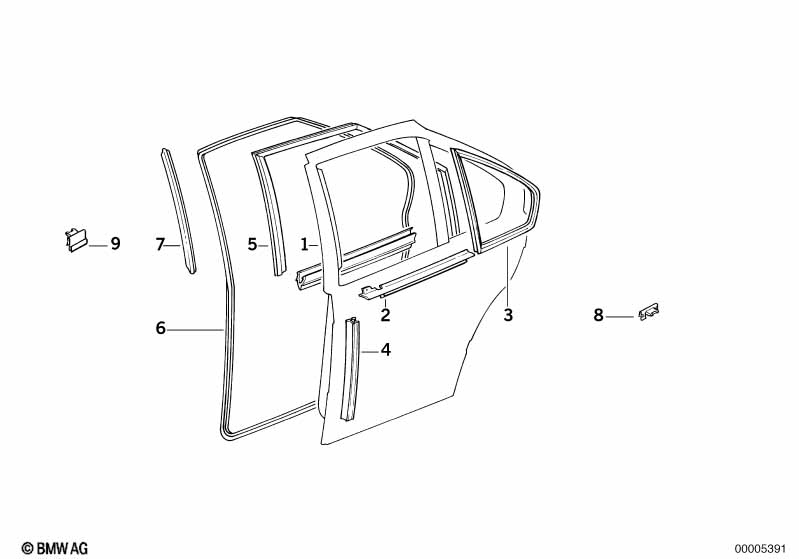

This Door weatherstrip rear technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 316i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Inner left window channel cover | 1 | 51228174765 | $20.05 | Shop at ECS Tuning | |||||
| 01 | Inner right window channel cover | 1 | 51228174766 | $20.05 | Shop at ECS Tuning | |||||
| 02 | Outer weatherstrip, left | 1 | 51221960847 | $32.85 | Shop at ECS Tuning | |||||
| 02 | Outer weatherstrip, right | 1 | 51221960848 | $32.85 | Shop at ECS Tuning | |||||
| 03 | Gasket left | 1 | 51341960915 | $20.14 | Shop at ECS Tuning | |||||
| 03 | Gasket right | 1 | 51341960916 | $20.14 | Shop at ECS Tuning | |||||
| 04 | Window guide | 1 | 51321960413 | $7.43 | Shop at ECS Tuning | |||||
| 05 | Left rear window guide | 1 | 51348213983 | $40.18 | Shop at ECS Tuning | |||||
| 05 | Rear right window guide | 1 | 51348213984 | $40.18 | ENDED | Shop at ECS Tuning | ||||
| 06 | Edge protection rear | 2 | 51728196290 | $85.81 | Shop at ECS Tuning | |||||
| 07 | Center left seal.betw.door and column | 1 | 51221960667 | $29.82 | Shop at ECS Tuning | |||||
| 07 | Center right seal.betw.door and column | 1 | 51221960668 | $29.82 | Shop at ECS Tuning | |||||
| 08 | Clamp | 2 | 51221960252 | $0.85 | Shop at ECS Tuning | |||||
| 09 | Clamp | 3 | 51211977747 | $1.11 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
