Door lock front for BMW 3 Series E36 320i (1996)

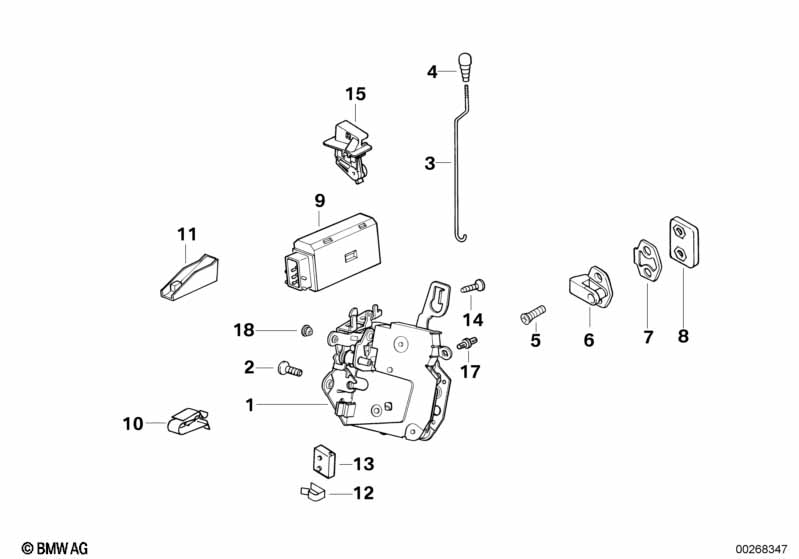

This Door lock front technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Door lock front left | 1 | 51218122203 | $170.37 | Shop at ECS Tuning | |||||
| 01 | Door lock front right | 1 | 51218122418 | $170.37 | +core | Shop at ECS Tuning | ||||
| 02 | Torx-bolt with washer | M6X12 | 6 | 51219130334 | $0.39 | Shop at ECS Tuning | ||||
| 03 | Operating rod | 2 | 51211977359 | $1.68 | Shop at ECS Tuning | |||||
| 04 | Lock button | SCHWARZ | 2 | 51211852140 | $1.82 | Shop at ECS Tuning | ||||
| 04 | Lock button | CHROM M. RILLEN | 2 | 51212491200 | $9.87 | Shop at ECS Tuning | ||||
| 05 | Torx-countersunk head screw | M8X18 | 2 | 51211928850 | $0.52 | Shop at ECS Tuning | ||||
| 06 | Latch Striker | 2 | 51218105511 | $44.32 | SI 510691373 | Shop at ECS Tuning | ||||
| 07 | Striker plate gasket | 2 | 01/1991 | 51218127140 | $2.50 | SI 510691373 | Shop at ECS Tuning | |||
| 08 | Lock plate | M8 | 2 | 51211960194 | $2.05 | Shop at ECS Tuning | ||||
| 09 | Actuator | 2 | 67118353012 | Shop at ECS Tuning | ||||||
| For vehicles with Central locking system |
=Yes |
|||||||||
| 10 | Cable holder | D=5MM | 2 | 61131379079 | $0.48 | Shop at ECS Tuning | ||||
| 11 | Covering cap | 2 | 51218119277 | $3.47 | Shop at ECS Tuning | |||||
| 17 | Circlip | 2 | 51218119278 | $0.50 | Shop at ECS Tuning | |||||
| 18 | Grommet | 4 | 52208238999 | $0.40 | Shop at ECS Tuning | |||||
Notes
- +core = plus core charge (possibility of a return of the old part)
- SI = Service Information
