Closing system, door, rear for BMW 3 Series E36 318i (1994)

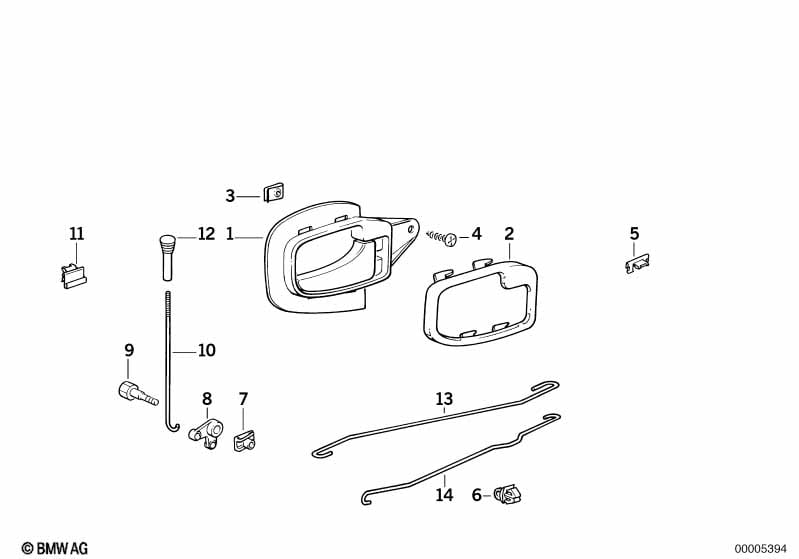

This Closing system, door, rear technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Door handle, inside left | SCHWARZ | 1 | 51221960829 | $14.63 | ENDED | Shop at ECS Tuning | |||
| 01 | Door handle inner right | SCHWARZ | 1 | 51221960830 | $14.63 | ENDED | Shop at ECS Tuning | |||
| INDIVIDUAL SERIES 95 HONGKONG | ||||||||||
| 01 | Door handle, inside left | M CHROM | 1 | 51222261149 | $42.10 | Shop at ECS Tuning | ||||
| 01 | Door handle inner right | M CHROM | 1 | 51222261150 | $42.10 | Shop at ECS Tuning | ||||
| 02 | Covering left | 1 | 51228219023 | $3.92 | Shop at ECS Tuning | |||||
| 02 | Covering right | 1 | 51228219024 | $3.92 | Shop at ECS Tuning | |||||
| 03 | Body nut | ST4,2-1-ZNS3 | 1 | 07129904220 | $0.09 | Shop at ECS Tuning | ||||
| 04 | Fillister head self-tapping screw | ISA ST4.2X13 | 1 | 07147117570 | $0.25 | Shop at ECS Tuning | ||||
| 05 | Clamp | 2 | 51221960252 | $0.85 | Shop at ECS Tuning | |||||
| 06 | Clamp | 2 | 51228202809 | $0.50 | Shop at ECS Tuning | |||||
| 08 | Lever | 2 | 51228132380 | $1.73 | Shop at ECS Tuning | |||||
| 09 | Expanding rivet | 2 | 51228119644 | $2.68 | Shop at ECS Tuning | |||||
| 10 | Operating rod | 1 | 51221960839 | $1.68 | Shop at ECS Tuning | |||||
| 11 | Clamp | 3 | 51211977747 | $1.11 | Shop at ECS Tuning | |||||
| 12 | Lock button | SCHWARZ | 2 | 51211852140 | $1.82 | Shop at ECS Tuning | ||||
| 13 | Connection rod | 1 | 51221960833 | $1.81 | Shop at ECS Tuning | |||||
| 14 | Left operating rod | 1 | 51221977617 | $1.72 | Shop at ECS Tuning | |||||
| 14 | Right operating rod | 1 | 51221977618 | $1.72 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
