Rear floor parts for BMW 3 Series E36 320i (1995)

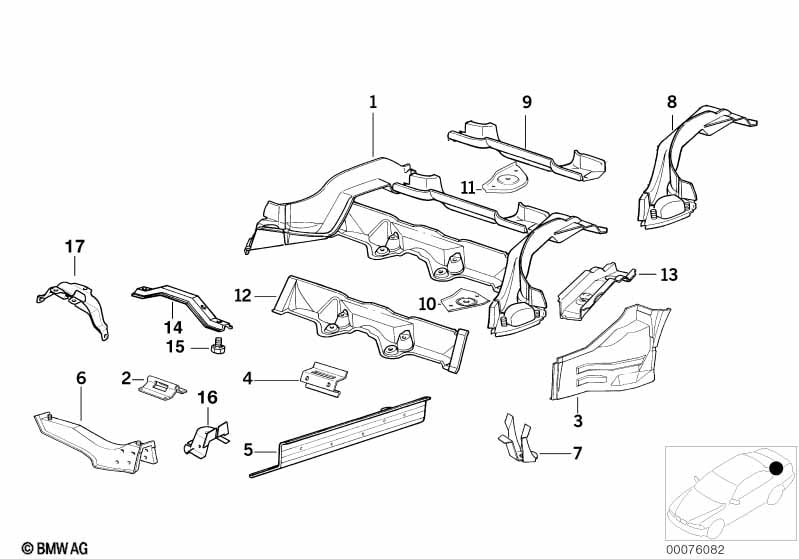

This Rear floor parts technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Carrier | 1 | 41118171143 | $558.27 | ENDED | Shop at ECS Tuning | ||||
| 02 | Bracket fuel tank inner rear | 4 | 41128130607 | $2.57 | ENDED | Shop at ECS Tuning | ||||
| 03 | Rear left side member | 1 | 41118132991 | $120.63 | ENDED | Shop at ECS Tuning | ||||
| 03 | Right rear side member | 1 | 41118132992 | $120.63 | ENDED | Shop at ECS Tuning | ||||
| 04 | Holder, backrest | 1 | 41128122398 | $3.42 | ENDED | Shop at ECS Tuning | ||||
| 05 | Left side member | 1 | 41128119251 | $86.81 | ENDED | Shop at ECS Tuning | ||||
| 05 | Right side member | 1 | 41128119252 | $86.81 | ENDED | Shop at ECS Tuning | ||||
| 06 | Left front seat console | 1 | 41118119291 | $32.81 | Shop at ECS Tuning | |||||
| 06 | Right front seat console | 1 | 41118119292 | $32.81 | Shop at ECS Tuning | |||||
| 07 | Brake pipe bracket | 2 | 41118119249 | $2.67 | ENDED | Shop at ECS Tuning | ||||
| 08 | Rear left side member | 1 | 41118171145 | $166.57 | ENDED | Shop at ECS Tuning | ||||
| 08 | Right rear side member | 1 | 41118171146 | $166.57 | ENDED | Shop at ECS Tuning | ||||
| 09 | Rear cross member for rear axle carrier | 1 | 41118153949 | $176.75 | Shop at ECS Tuning | |||||
| 12 | Front cross member for rear axle carrier | 1 | 41118174049 | $196.90 | Shop at ECS Tuning | |||||
| 13 | Left reinforcement floor panel | 1 | 41118186371 | $22.60 | Shop at ECS Tuning | |||||
| 13 | Right reinforcement floor panel | 1 | 41118186372 | $22.60 | Shop at ECS Tuning | |||||
| 14 | Bridge tunnel below | 1 | 51711960052 | $20.08 | ENDED | Shop at ECS Tuning | ||||
| 15 | Hex bolt with washer | M8X16 | 4 | 07119905528 | $0.62 | Shop at ECS Tuning | ||||
| 16 | Left rear seat console | 1 | 41128259863 | $10.70 | Shop at ECS Tuning | |||||
| 16 | Right rear seat console | 1 | 41128259864 | $10.70 | Shop at ECS Tuning | |||||
| 17 | Bracket f shifting arm bearing | 1 | 41128246251 | $3.23 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
