Door weatherstrip front for BMW 3 Series E30 320i (1992)

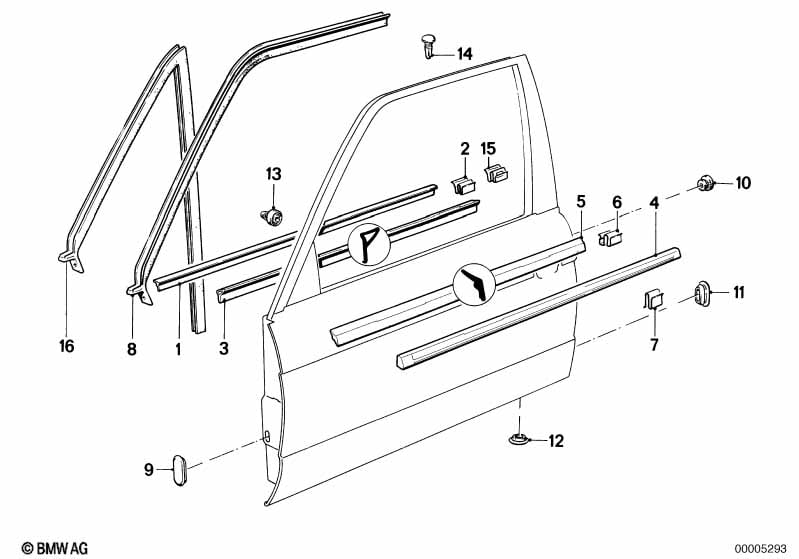

This Door weatherstrip front technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1992.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Clamp | X | 51211906277 | $4.33 | ENDED | Shop at ECS Tuning | ||||
| FOR VEHICLES WITH AND WITHOUT SHADOW-LINE |
||||||||||
| 03 | Door weather strip inner left | SCHWARZ | 1 | 51211942821 | $24.91 | Shop at ECS Tuning | ||||
| 03 | Door weather strip inner right | SCHWARZ | 1 | 51211942822 | $24.91 | Shop at ECS Tuning | ||||
| 04 | Covering left | CHROM | 1 | 51211888421 | $67.14 | Shop at ECS Tuning | ||||
| 04 | Covering right | CHROM | 1 | 51211888422 | $67.14 | Shop at ECS Tuning | ||||
| For vehicles with Shadow-Line |
=Yes |
|||||||||
| 04 | Covering left | SCHWARZ | 1 | 51211932385 | $67.13 | Shop at ECS Tuning | ||||
| 04 | Covering right | SCHWARZ | 1 | 51211932386 | $67.13 | Shop at ECS Tuning | ||||
| 05 | Covering left | 1 | 51321924753 | $17.27 | Shop at ECS Tuning | |||||
| 05 | Covering right | 1 | 51321924754 | $17.27 | Shop at ECS Tuning | |||||
| 06 | Clamp | X | 51211876087 | $0.52 | Shop at ECS Tuning | |||||
| 07 | Clamp | 4 | 51211874624 | $0.57 | Shop at ECS Tuning | |||||
| 07 | Clamp | 2 | 09/1983 | 51211904513 | $1.15 | Shop at ECS Tuning | ||||
| 07 | Clamp | 2 | 09/1983 | 51211922699 | $1.15 | Shop at ECS Tuning | ||||
| 07 | Clamp | 2 | 09/1983 | 51211922761 | $2.23 | Shop at ECS Tuning | ||||
| 09 | Blind plug | 20X50 | 1 | 51711852763 | $1.19 | Shop at ECS Tuning | ||||
| 10 | Blind plug | D=6MM | 2 | 51711904603 | $0.32 | Shop at ECS Tuning | ||||
| 11 | Blind plug | 5,5X15 | 4 | 51221875179 | $0.57 | ENDED | Shop at ECS Tuning | |||
| 12 | Blind plug | D=20MM | 6 | 51711964810 | $0.39 | Shop at ECS Tuning | ||||
| 13 | Pushrod seal | 2 | 51211913779 | $1.03 | Shop at ECS Tuning | |||||

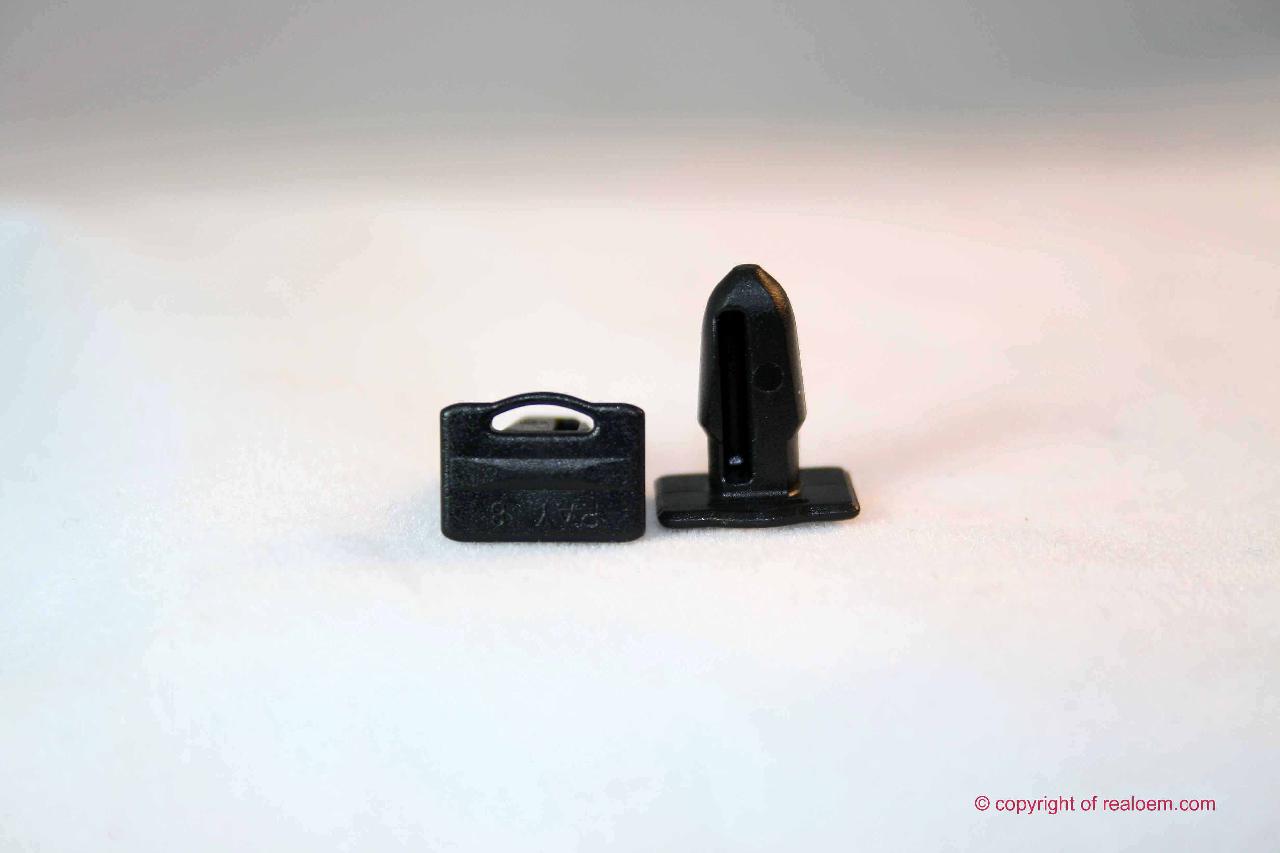

| 14 | Clamp | 2 | 51221856946 | $0.44 | Shop at ECS Tuning | |||||
| 15 | Clamp | 2 | 51211906277 | $4.33 | ENDED | Shop at ECS Tuning | ||||
| 15 | Clamp | X | 51221911805 | $0.68 | Shop at ECS Tuning | |||||
| 16 | Gasket left | 1 | 51211929895 | $161.53 | Shop at ECS Tuning | |||||
| 16 | Gasket right | 1 | 51211929896 | $161.53 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
