Door weatherstrip rear for BMW 7 Series E23 735i (1986)

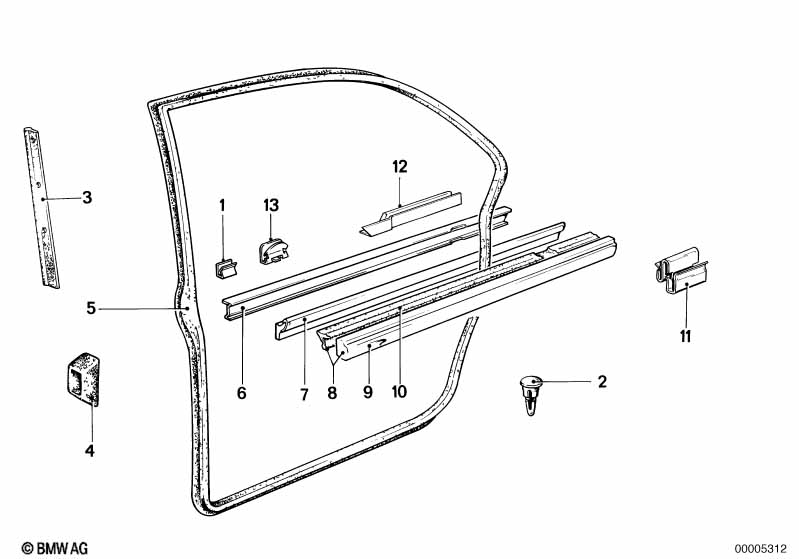

This Door weatherstrip rear technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 735i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1986.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Clamp | 8 | 51211860853 | $0.72 | Shop at ECS Tuning | |||||
| 02 | Clamp | 2 | 51221856946 | $0.44 | Shop at ECS Tuning | |||||
| 03 | Gasket left | 1 | 51221847095 | $23.39 | Shop at ECS Tuning | |||||
| 03 | Gasket right | 1 | 51221847096 | $23.39 | ENDED | Shop at ECS Tuning | ||||
| 04 | Gasket | 2 | 51211854683 | $1.98 | ENDED | Shop at ECS Tuning | ||||
| 05 | Door weatherstrip rear left | 1 | 51221845073 | $97.29 | ENDED | Shop at ECS Tuning | ||||
| 05 | Door weatherstrip rear right | 1 | 51221845074 | $97.29 | ENDED | Shop at ECS Tuning | ||||
| 06 | Waist rail trim strip, left rear | 1 | 51221886505 | $18.20 | Shop at ECS Tuning | |||||
| 06 | Waist rail trim strip, right rear | 1 | 51221886506 | $18.20 | Shop at ECS Tuning | |||||
| 06 | Waist rail trim strip, left rear | SCHWARZ | 1 | 51221959703 | $25.39 | ENDED | Shop at ECS Tuning | |||
| 06 | Waist rail trim strip, right rear | SCHWARZ | 1 | 51221959704 | $25.39 | Shop at ECS Tuning | ||||
| 07 | Door weatherstrip inner | 2 | 51221886507 | $11.78 | Shop at ECS Tuning | |||||
| 09 | Covering left | 1 | 06/1979 | 51221869907 | $41.57 | Shop at ECS Tuning | ||||
| 09 | Covering right | 1 | 06/1979 | 51221869908 | $41.57 | ENDED | Shop at ECS Tuning | |||
| 09 | Covering left | SCHWARZ | 1 | 06/1979 | 51221959705 | $104.90 | ENDED | Shop at ECS Tuning | ||
| 09 | Covering right | SCHWARZ | 1 | 06/1979 | 51221959706 | $104.90 | ENDED | Shop at ECS Tuning | ||
| 10 | Covering left | 1 | 06/1979 | 51221869963 | $20.79 | ENDED | Shop at ECS Tuning | |||
| 10 | Covering right | 1 | 06/1979 | 51221869964 | $20.79 | Shop at ECS Tuning | ||||
| 11 | Clamp | X | 06/1979 | 51211867969 | $0.65 | ENDED | Shop at ECS Tuning | |||
| 12 | Water drain, left | 1 | 51221917795 | $1.27 | ENDED | Shop at ECS Tuning | ||||
| 12 | Water drain, right | 1 | 51221917796 | $1.27 | ENDED | Shop at ECS Tuning | ||||
| 13 | Clamp | 2 | 51221851044 | $0.54 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
