Body skeleton for BMW 3 Series E36 M3 (1999)

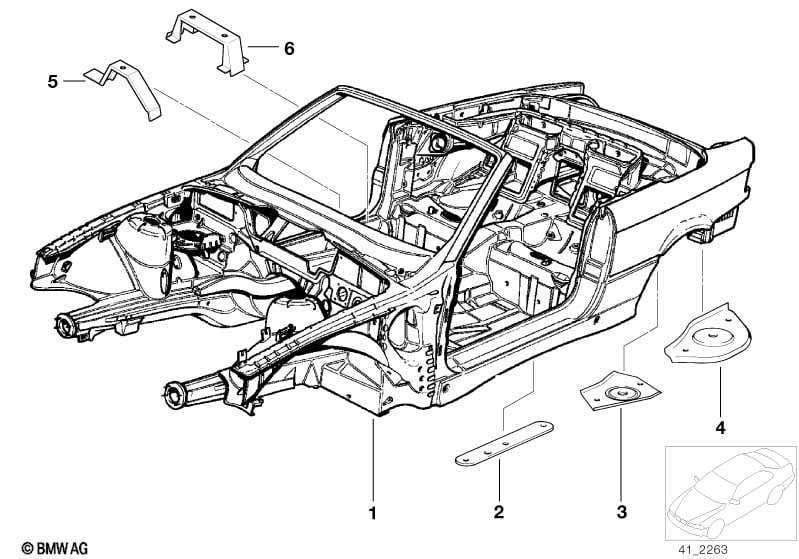

This Body skeleton technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 M3. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1999.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| FOR VEHICLES WITH AND WITHOUT ELECTROMECHANIC FOLDING TOP |
||||||||||
| 01 | Body skeleton | BASIS | 1 | 41008205085 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Spacer for gearbox left | 1 | 41122256493 | $14.08 | Shop at ECS Tuning | |||||
| -- | Spacer for gearbox right | 1 | 41122256494 | $14.08 | Shop at ECS Tuning | |||||
| -- | Spacer ring for rear axle rear left | 1 | 41112256497 | $24.02 | Shop at ECS Tuning | |||||
| -- | Spacer ring for rear axle rear right | 1 | 41112256498 | $24.02 | Shop at ECS Tuning | |||||
| -- | Spacer ring for rear axle front left | 1 | 41002256495 | $24.78 | Shop at ECS Tuning | |||||
| -- | Spacer ring for rear axle front right | 1 | 41002256496 | $24.78 | Shop at ECS Tuning | |||||
| For vehicles with EM Folding top |
=Yes |
|||||||||
| 01 | Body skeleton | BASIS | 1 | 41008205085 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Motor bracket of folding top flap | 1 | 51258161694 | $17.59 | Shop at ECS Tuning | |||||
| -- | Support f bracket f fold.top flap motor | 1 | 41148184759 | $11.20 | Shop at ECS Tuning | |||||
| -- | Reinforcement of hood compartment drive | 1 | 41138170651 | $9.78 | ENDED | Shop at ECS Tuning | ||||
| -- | Stopper engine bearing | 1 | 41138183157 | $7.37 | Shop at ECS Tuning | |||||
| -- | Module bracket | 1 | 41128176248 | $4.89 | Shop at ECS Tuning | |||||
| -- | Hex nut with plate | AM6-8-ZNNIV SI | 4 | 07129904553 | $0.64 | Shop at ECS Tuning | ||||
| -- | Washer | A6,4-ZNNIV SI | 4 | 07119904202 | Shop at ECS Tuning | |||||
| 02 | Spacer for gearbox left | 1 | 41122256493 | $14.08 | Shop at ECS Tuning | |||||
| 02 | Spacer for gearbox right | 1 | 41122256494 | $14.08 | Shop at ECS Tuning | |||||
| 03 | Spacer ring for rear axle front left | 1 | 41002256495 | $24.78 | Shop at ECS Tuning | |||||
| 03 | Spacer ring for rear axle front right | 1 | 41002256496 | $24.78 | Shop at ECS Tuning | |||||
| 04 | Spacer ring for rear axle rear left | 1 | 41112256497 | $24.02 | Shop at ECS Tuning | |||||
| 04 | Spacer ring for rear axle rear right | 1 | 41112256498 | $24.02 | Shop at ECS Tuning | |||||
| ONLY APPLIES TO ASG | ||||||||||
| 05 | Support f front gear shift lug | 1 | 41132492193 | ENDED | Shop at ECS Tuning | |||||
| 06 | Support f rear gear shift lug | 1 | 41132492194 | ENDED | Shop at ECS Tuning | |||||
