Side panel/tail trim for BMW 7 Series E38 740i (1998)

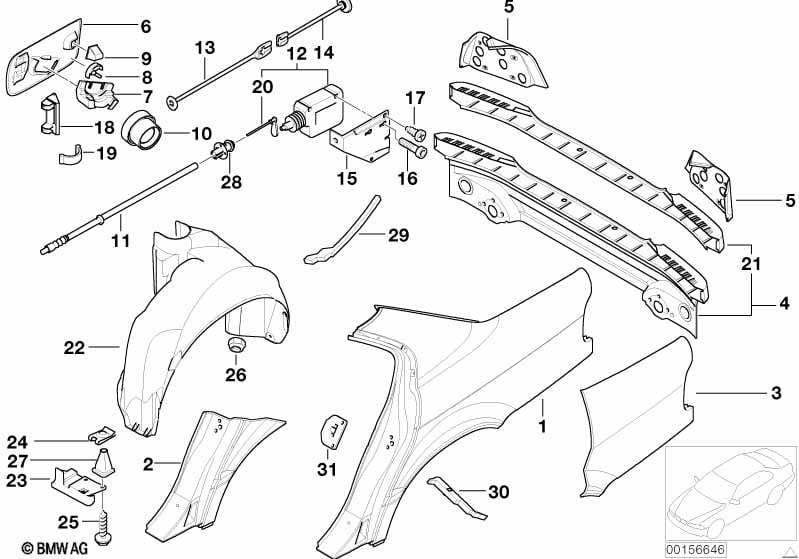

This Side panel/tail trim technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 740i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Left rear side panel | 1 | 41358163857 | $581.94 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| 01 | Right rear side panel | 1 | 41358163858 | $581.94 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Lock plate | 1 | 41358227947 | $86.77 | Shop at ECS Tuning | |||||
| -- | Molded part column C | 1 | 41218170397 | $10.56 | ENDED | Shop at ECS Tuning | ||||
| -- | Moulded part f entrance | 1 | 41218170398 | $22.70 | ENDED | Shop at ECS Tuning | ||||
| -- | Welding pins. | M6X10 | 2 | 41148205790 | $0.35 | Shop at ECS Tuning | ||||
| 02 | Section of rear left fender | 1 | 41358183127 | $144.61 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| 02 | Section of rear right fender | 1 | 41358183128 | $144.61 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Lock plate | 1 | 41358227947 | $86.77 | Shop at ECS Tuning | |||||
| -- | Molded part column C | 1 | 41218170397 | $10.56 | ENDED | Shop at ECS Tuning | ||||
| -- | Moulded part f entrance | 1 | 41218170398 | $22.70 | ENDED | Shop at ECS Tuning | ||||
| -- | Welding pins. | M6X10 | 2 | 41148205790 | $0.35 | Shop at ECS Tuning | ||||
| 03 | Section of rear left fender | 1 | 41358183125 | $236.20 | Shop at ECS Tuning | |||||
| 03 | Section of rear right fender | 1 | 41358183126 | $236.20 | Shop at ECS Tuning | |||||
| 04 | Complete tail trim | 1 | 41348167195 | $350.14 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Rear lights cup, left | 1 | 41348202585 | $21.00 | Shop at ECS Tuning | |||||
| -- | Rear lights cup, right | 1 | 41348202586 | $21.00 | Shop at ECS Tuning | |||||
| 05 | Rear lights cup, left | 1 | 41348202585 | $21.00 | Shop at ECS Tuning | |||||
| 05 | Rear lights cup, right | 1 | 41348202586 | $21.00 | Shop at ECS Tuning | |||||
| 06 | Fill-in flap | 1 | 51178170540 | $34.70 | Shop at ECS Tuning | |||||
| 07 | Support filler cap | 1 | 51171923919 | $5.74 | Shop at ECS Tuning | |||||
| 08 | Stop buffer | 1 | 51171853772 | $1.52 | Shop at ECS Tuning | |||||
| 09 | Cap | 1 | 51171928699 | $0.62 | Shop at ECS Tuning | |||||
| 10 | Rubber cover | 1 | 51718150381 | $8.89 | Shop at ECS Tuning | |||||
| 11 | Actuator bowden cable | 208MM | 1 | 51258164787 | $8.58 | Shop at ECS Tuning | ||||
| 12 | Filler flap actuator | 1 | 67116987625 | $57.47 | Shop at ECS Tuning | |||||
| 13 | Pulling strip f emergency mechanism | 1 | 51258132168 | $0.97 | Shop at ECS Tuning | |||||
| 14 | Emergency mechanism | 1 | 51258132166 | $0.93 | Shop at ECS Tuning | |||||
| 15 | Actuator holder | 1 | 51258150484 | $10.43 | Shop at ECS Tuning | |||||
| 16 | Torx-bolt for plastic material | ISA TS5X16 | 2 | 07149113701 | $0.38 | Shop at ECS Tuning | ||||
| 17 | Torx bolt | ISA M5X14 | 2 | 51458117556 | $0.33 | Shop at ECS Tuning | ||||
| 18 | Hinge, gas cap | 1 | 51171970450 | $11.62 | Shop at ECS Tuning | |||||
| 19 | Spring | 1 | 51171969235 | $1.38 | Shop at ECS Tuning | |||||
| 20 | Fill-in flap locking rod | 1 | 67118360033 | $1.95 | Shop at ECS Tuning | |||||
| 21 | Outer panel tail trim | 1 | 41348150939 | $192.56 | Shop at ECS Tuning | |||||
| 22 | Cover, wheel housing, rear left | 1 | 51718125981 | $146.75 | Shop at ECS Tuning | |||||
| 22 | Cover, wheel housing, rear right | 1 | 51718125982 | $146.75 | Shop at ECS Tuning | |||||
| 23 | Air duct, left | 1 | 51718192895 | $3.50 | Shop at ECS Tuning | |||||
| 23 | Air duct, right | 1 | 51718192896 | $3.50 | ENDED, +core | Shop at ECS Tuning | ||||
| 24 | Body nut | ST4,8-9-ZNS3 | 4 | 07129904150 | $0.25 | Shop at ECS Tuning | ||||
| 25 | Hex head screw | ST4,8X13-C-U1-Z | 6 | 07119906128 | $0.18 | Shop at ECS Tuning | ||||
| 26 | Plastic nut for coarse threaded pin | M6 | 8 | 16131176747 | $0.53 | Shop at ECS Tuning | ||||
| 27 | Expanding nut | ST 4.8 WEISS | 2 | 63171367868 | $0.60 | Shop at ECS Tuning | ||||
| 28 | Sleeve | 1 | 51258128707 | $2.76 | Shop at ECS Tuning | |||||
| 29 | Molded part column C | 2 | 41218170397 | $10.56 | ENDED | Shop at ECS Tuning | ||||
| 30 | Moulded part f entrance | 2 | 41218170398 | $22.70 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
