Mounting parts for trunk floor panel for BMW 5 Series E39 528i (2000)

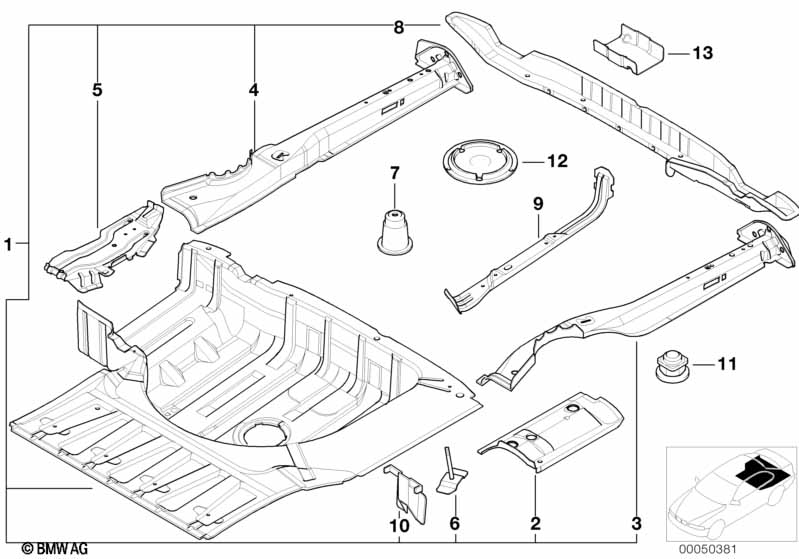

This Mounting parts for trunk floor panel technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Trunk floor | BASIS | 1 | 03/1996 | 41128185092 | $1073.55 | Shop at ECS Tuning | |||
| 02 | Trunk floor left | 1 | 41128209455 | $72.47 | Shop at ECS Tuning | |||||
| 03 | Left side member | 1 | 41118209463 | $167.00 | Shop at ECS Tuning | |||||
| 04 | Right side member | 1 | 41118209464 | $167.00 | Shop at ECS Tuning | |||||
| 05 | Battery tray | 1 | 03/1996 | 41118219130 | $104.33 | Shop at ECS Tuning | ||||
| 06 | Rear car jack bracket | 1 | 41128209459 | $14.25 | ENDED | Shop at ECS Tuning | ||||
| 07 | Bracket for spare wheel | 1 | 51718108473 | $12.65 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Threaded rod | M8X192 | 1 | 41118209460 | $3.62 | Shop at ECS Tuning | ||||
| 08 | Cross member, trunk floor rear | 1 | 41118171682 | $225.61 | Shop at ECS Tuning | |||||
| For vehicles with Self-levelling suspension |
=Yes |
|||||||||
| 09 | Support, air supply system right | 1 | 41008209466 | $32.21 | Shop at ECS Tuning | |||||
| 09 | Support, air supply system left | 1 | 41008209467 | $32.21 | Shop at ECS Tuning | |||||
| 10 | Wedge bracket | 1 | 41128169029 | $11.40 | ENDED | Shop at ECS Tuning | ||||
| 11 | Earth pin | M8X12 | X | 07147182215 | Shop at ECS Tuning | |||||
| 11 | Earth pin | M6X12 | X | 41248185432 | Shop at ECS Tuning | |||||
| 12 | Cover lid | D=144MM | 1 | 41128200462 | $5.07 | ENDED | Shop at ECS Tuning | |||
