Engine hood/mounting parts for BMW 3 Series E36 325i (1993)

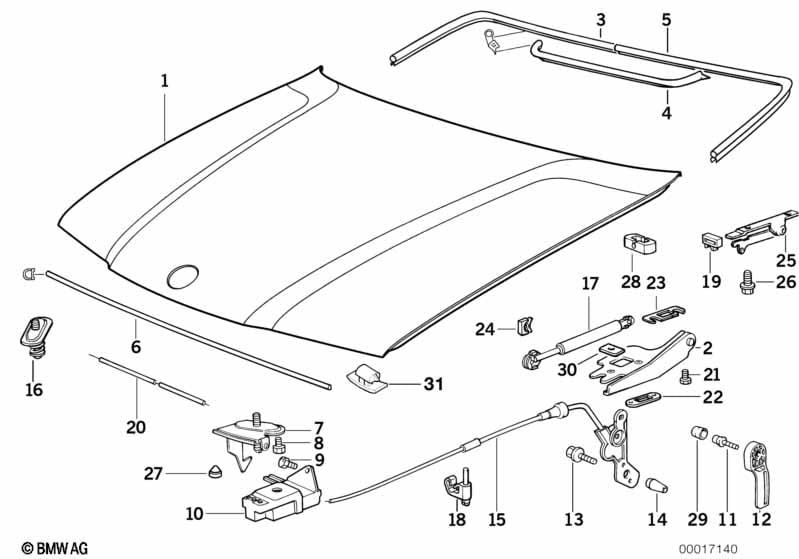

This Engine hood/mounting parts technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 325i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1993.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Hood | 1 | 41618135346 | $485.65 | Shop at ECS Tuning | |||||
| 02 | Left engine hood hinge | 1 | 06/1993 | 41618175001 | $41.12 | Shop at ECS Tuning | ||||
| 02 | Right engine hood hinge | 1 | 06/1993 | 41618175002 | $41.12 | Shop at ECS Tuning | ||||
| 03 | Lateral engine hood sealing | L=1195MM | 1 | 51718165273 | $21.42 | Shop at ECS Tuning | ||||
| 04 | Rear engine hood sealing | L=790MM | 1 | 51711977438 | $16.07 | Shop at ECS Tuning | ||||
| 05 | Lateral engine hood sealing | L=1195MM | 1 | 51718165273 | $21.42 | Shop at ECS Tuning | ||||
| 06 | Front engine hood sealing | 1 | 51238207821 | $18.29 | Shop at ECS Tuning | |||||
| 07 | Hood catch | 1 | 51238130865 | $23.32 | Shop at ECS Tuning | |||||
| 08 | Torx-bolt with washer | M6X14 | 4 | 07149156085 | $0.56 | Shop at ECS Tuning | ||||
| 09 | Torx-bolt with washer | M6X12 | 6 | 07146985055 | $0.38 | Shop at ECS Tuning | ||||
| 10 | Left lower part of hood lock | 1 | 51231977635 | $16.70 | Shop at ECS Tuning | |||||
| 10 | Right lower part of hood lock | 1 | 51231977636 | $16.70 | Shop at ECS Tuning | |||||
| 11 | Phillips screw f plastic material | TS 5X13 | 1 | 07146959892 | $0.30 | Shop at ECS Tuning | ||||
| 12 | Bowden cable lever | 1 | 51231938298 | $3.95 | Shop at ECS Tuning | |||||
| 13 | Hex head screw | ST4,8X16-ZNS3 | 2 | 07119901299 | $0.25 | Shop at ECS Tuning | ||||
| 14 | Expanding nut | ST 4.8 | 2 | 63121374075 | $0.23 | Shop at ECS Tuning | ||||
| 15 | Engine hood mechanism | 1 | 51238135822 | $32.05 | Shop at ECS Tuning | |||||
| 16 | Upper part of hood lock | 1 | 51238122267 | $15.73 | Shop at ECS Tuning | |||||
| 17 | Gas pressurized spring | 280N | 2 | 51238119558 | $45.59 | Shop at ECS Tuning | ||||
| 18 | Clamp | 2 | 51231928068 | $1.13 | Shop at ECS Tuning | |||||
| 20 | Bowden cable | 1 | 51231977391 | $20.57 | Shop at ECS Tuning | |||||
| 21 | Hex bolt with washer | M6X16-U2-ZNS3 | 8 | 07119902913 | Shop at ECS Tuning | |||||
| 21 | Hex bolt with washer | M6X20-Z2 | 8 | 41618191886 | $0.53 | Shop at ECS Tuning | ||||
| 22 | Shim | 2 | 41618151880 | $0.58 | Shop at ECS Tuning | |||||
| 23 | Shim | 2 | 41618151880 | $0.58 | Shop at ECS Tuning | |||||
| 24 | Securing plate | 4 | 51231908430 | $1.72 | Shop at ECS Tuning | |||||
| 26 | Hex bolt with washer | M6X12-Z3-2 | 4 | 07119915014 | $3.47 | ENDED | Shop at ECS Tuning | |||
| 27 | Stop buffer | 1 | 51231977541 | $0.95 | Shop at ECS Tuning | |||||
| 29 | Covering cap | SCHWARZ | 1 | 51181823474 | $0.21 | Shop at ECS Tuning | ||||
| 31 | Clip | 15 | 51238207820 | $0.61 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
