Front door control/door lock for BMW 3 Series E36 323i (1998)

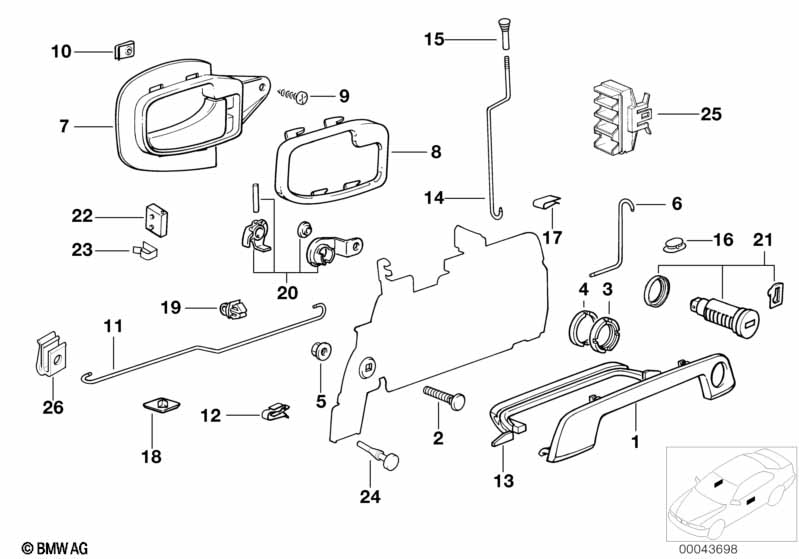

This Front door control/door lock technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 323i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.

Front door control/door lock
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Covering front left 1 51218122441 $14.10 Shop at ECS Tuning
01 Covering front right 1 51218122442 $14.10 Shop at ECS Tuning
For vehicles with
Infrared remote control
and
Radio remote control
=Yes

=Yes
01 Covering front left 1 01/1995 51218205301 $14.10 Shop at ECS Tuning
02 Pin 2 09/1992 51218151559 $1.50 Shop at ECS Tuning
03 Nut M24X1 2 51211928307 $3.73 Shop at ECS Tuning
04 Gasket 2 51211928380 $0.21 Shop at ECS Tuning
05 Clamp B6 2 09/1992 07129934911 $0.38 Shop at ECS Tuning
06 Lever 2 51211960805 $1.32 Shop at ECS Tuning
07 Door handle, inside left SCHWARZ 1 51211960807 $12.85 Shop at ECS Tuning
07 Door handle inner right SCHWARZ 1 51211960808 $12.85 ENDED Shop at ECS Tuning
07 Door handle, inside left M CHROM 1 51212261147 $42.10 ENDED Shop at ECS Tuning
07 Door handle inner right M CHROM 1 51212261148 $42.10 ENDED Shop at ECS Tuning
08 Covering left 1 51228219023 $3.92 Shop at ECS Tuning
08 Covering right 1 51228219024 $3.92 Shop at ECS Tuning
09 Fillister head self-tapping screw ISA ST4.2X13 2 07147117570 $0.25 Shop at ECS Tuning
10 Body nut ST4,2-1-ZNS3 2 07129904220 $0.09 Shop at ECS Tuning
11 Left operating rod 1 51218223639 $16.01 Shop at ECS Tuning
additionally required parts:
item 26
11 Right operating rod 1 51218223640 $16.01 Shop at ECS Tuning
additionally required parts:
item 26
12 Cable holder D=5MM 2 61131379079 $0.48 Shop at ECS Tuning
13 Base 2 51211977669 $3.98 Shop at ECS Tuning
14 Operating rod 2 51211977359 $1.68 Shop at ECS Tuning
15 Lock button SCHWARZ 2 51211852140 $1.82 Shop at ECS Tuning
15 Lock button CHROM M. RILLEN 2 51212491200 $9.87 Shop at ECS Tuning
16 Blind plug 24X12 2 51211975404 $1.26 Shop at ECS Tuning
17 Clamp 2 51211970530 $1.69 Shop at ECS Tuning
18 Plug-in connection bracket 2 61131383592 $1.37 Shop at ECS Tuning
19 Clamp 2 51228202809 $0.50 Shop at ECS Tuning
21 Repair kit lock cylinder left 1 09/1995 51218203099 $38.20 Shop at ECS Tuning
Important notice! Before ordering keys,
central locking systems, control units
(EWS immobilizer/CAS), etc., it is
vital to ensure that the customer
and/or vehicle owner present proof of
authorization in the form of original
vehicle documents and an official photo
ID! A power of attorney from the
vehicle owner is also required for
authorised third parties. Copies of the
specified credentials (proof of
authorisation) must be kept in the
vehicle records. Please inform BMW
Service immediately if a vehicle key is
lost so it can be deactivated in order
to avoid taking the risk of losing the
insurance cover due to gross negligence
in the event of a theft.
21 Repair kit lock cylinder right 1 09/1995 51218203100 $38.20 Shop at ECS Tuning
Important notice! Before ordering keys,
central locking systems, control units
(EWS immobilizer/CAS), etc., it is
vital to ensure that the customer
and/or vehicle owner present proof of
authorization in the form of original
vehicle documents and an official photo
ID! A power of attorney from the
vehicle owner is also required for
authorised third parties. Copies of the
specified credentials (proof of
authorisation) must be kept in the
vehicle records. Please inform BMW
Service immediately if a vehicle key is
lost so it can be deactivated in order
to avoid taking the risk of losing the
insurance cover due to gross negligence
in the event of a theft.
For vehicles with
Door lock heater
=Yes
22 Microswitch 1 61311387028 $38.47 +core Shop at ECS Tuning
For vehicles with
Interior light delayed action
and
Central locking system
=Yes

=Yes
22 Microswitch door lock left 1 51218208423 $31.25 Shop at ECS Tuning
23 Microswitch clip X 61311382372 $0.25 Shop at ECS Tuning
25 Plug-in connection bracket 2 61131383592 $1.37 Shop at ECS Tuning
26 Clamp 2 51418223643 $0.74 Shop at ECS Tuning
Notes
  • ENDED = the part has been discontinued (no longer available).
  • +core = plus core charge (possibility of a return of the old part)
