Door weatherstrip rear for BMW 3 Series E46 330xi (2001)

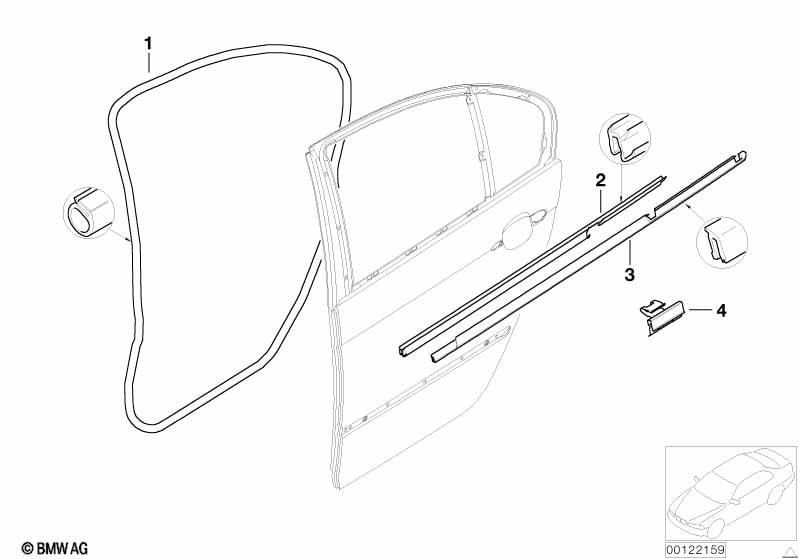

This Door weatherstrip rear technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 330xi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Door weatherstrip rear left | 1 | 51348194697 | $84.48 | Shop at ECS Tuning | |||||
| 01 | Door weatherstrip rear right | 1 | 51348194698 | $84.48 | Shop at ECS Tuning | |||||
| 02 | Inner left window channel cover | 1 | 51348194703 | $21.72 | Shop at ECS Tuning | |||||
| 02 | Inner right window channel cover | 1 | 51348194704 | $21.72 | Shop at ECS Tuning | |||||
| 03 | Outer weatherstrip, left | 1 | 51348194709 | $21.72 | Shop at ECS Tuning | |||||
| 03 | Outer weatherstrip, right | 1 | 51348194710 | $21.72 | Shop at ECS Tuning | |||||
| 03 | Outer weatherstrip, left | CHROM | 1 | 51348194759 | $33.03 | Shop at ECS Tuning | ||||
| 03 | Outer weatherstrip, right | CHROM | 1 | 51348194760 | $33.03 | Shop at ECS Tuning | ||||
| For vehicles with High gloss shadow line |
S760A=Yes |
|||||||||
| 03 | Outer weatherstrip, left | GLANZSCHWARZ | 1 | 51342695291 | $58.82 | Shop at ECS Tuning | ||||
| 03 | Outer weatherstrip, right | GLANZSCHWARZ | 1 | 51342695292 | $58.82 | Shop at ECS Tuning | ||||
| 04 | Clamp | 8 | 51418225552 | $0.74 | Shop at ECS Tuning | |||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 330xi Door weatherstrip rear?
- This technical diagram illustrates the Door weatherstrip rear within the Bodywork group for the 3 Series E46 330xi produced during 2001. It provides a detailed exploded view of the components, identifying key parts such as the Door weatherstrip rear left (Part #51348194697).
- Which models use the hardware listed in this Door weatherstrip rear?
- The hardware and components featured in the Door weatherstrip rear are specific to the 3 Series E46 330xi produced during 2001. These technical specifications ensure that parts like the Door weatherstrip rear left (51348194697) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Door weatherstrip rear assembly?
- Each item in the Door weatherstrip rear corresponds to the numbered list below the illustration. For the 3 Series E46 330xi, you can identify the Door weatherstrip rear left by locating its position on the schematic, which then links to the official BMW part number 51348194697 for the Bodywork section.
