Body-side frame-side member/columns for BMW 1502-2002tii 1802 (1975)

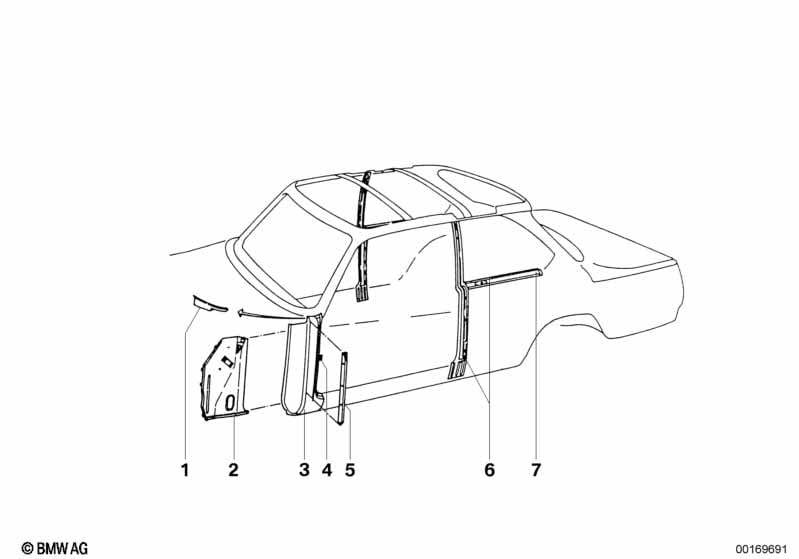

This Body-side frame-side member/columns technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 1802. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1975.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Covering plate left | 1 | 41321813497 | Shop at ECS Tuning | ||||||
| 01 | Covering plate right | 1 | 41321813498 | ENDED | Shop at ECS Tuning | |||||
| 02 | Covering plate column front left | 1 | 41215430128 | $87.29 | ENDED | Shop at ECS Tuning | ||||
| 02 | Covering plate column front right | 1 | 41215430129 | $83.47 | Shop at ECS Tuning | |||||
| 03 | Column front left | 1 | 41215430115 | $192.86 | ENDED | Shop at ECS Tuning | ||||
| 03 | Column front right | 1 | 41215430116 | $192.86 | ENDED | Shop at ECS Tuning | ||||
| 04 | Bracket for door retainer | 1 | 41211858285 | $2.19 | Shop at ECS Tuning | |||||
| 05 | Support left | 1 | 41211826411 | $30.09 | ENDED | Shop at ECS Tuning | ||||
| 05 | Support right | 1 | 41211826412 | $30.09 | ENDED | Shop at ECS Tuning | ||||
| 06 | Column rear left | 1 | 03/1966 | 07/1977 | 41211817075 | ENDED | Shop at ECS Tuning | |||
| 06 | Column rear right | 1 | 03/1966 | 07/1977 | 41211817076 | ENDED | Shop at ECS Tuning | |||
| 07 | Connection plate left | 1 | 03/1966 | 07/1977 | 41211852119 | ENDED | Shop at ECS Tuning | |||
| 07 | Connection plate right | 1 | 03/1966 | 07/1977 | 41211852120 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
