Floorpan assembly for BMW 1502-2002tii 2002 (1973)

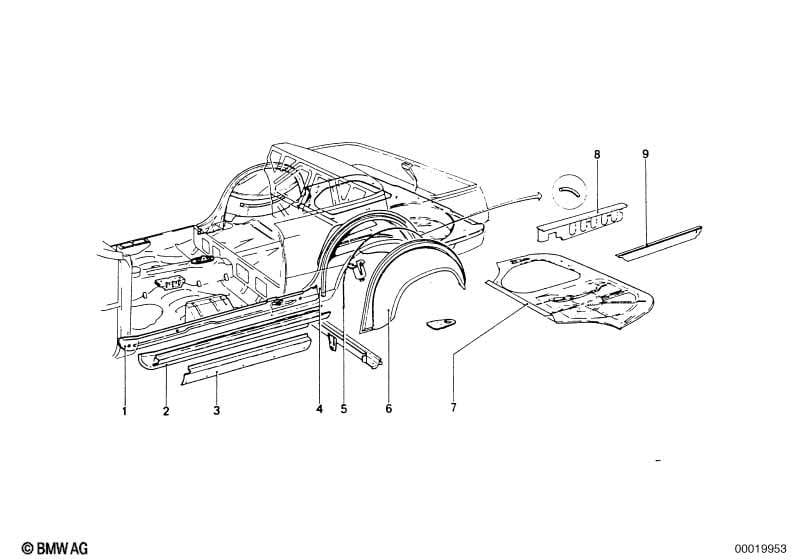

This Floorpan assembly technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 2002. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1973.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Left side member | 1 | 41111829983 | $253.29 | ENDED | Shop at ECS Tuning | ||||
| 01 | Right side member | 1 | 41111829984 | $253.29 | ENDED | Shop at ECS Tuning | ||||
| 02 | Reinforcement left | 1 | 01/1968 | 12/1975 | 41111803499 | $385.02 | ENDED | Shop at ECS Tuning | ||
| 02 | Reinforcement right | 1 | 01/1968 | 12/1975 | 41111803500 | $385.02 | ENDED | Shop at ECS Tuning | ||
| 03 | Rocker panel left | REPARATURBLECH | 1 | 41351885101 | $66.51 | ENDED | Shop at ECS Tuning | |||
| 03 | Rocker panel right | REPARATURBLECH | 1 | 41351885102 | $26.79 | ENDED | Shop at ECS Tuning | |||
| 03 | Covering left | 1 | 41356440140 | $82.32 | Shop at ECS Tuning | |||||
| 03 | Covering right | 1 | 41356440141 | $82.32 | ENDED | Shop at ECS Tuning | ||||
| 04 | Left rear inner wheelhouse | 1 | 41145403140 | $315.46 | Shop at ECS Tuning | |||||
| 04 | Right rear inner wheelhouse | 1 | 41145403141 | $397.10 | Shop at ECS Tuning | |||||
| 06 | Wheel arch outer rear left | 1 | 03/1966 | 07/1977 | 41145403145 | $326.53 | ENDED | Shop at ECS Tuning | ||
| 06 | Wheel arch outer rear right | 1 | 03/1966 | 07/1977 | 41145403146 | $326.53 | Shop at ECS Tuning | |||
| 07 | Trunk floor | 1 | 03/1966 | 07/1977 | 41121838992 | $524.38 | ENDED | Shop at ECS Tuning | ||
| 08 | Supporting plate | 1 | 03/1966 | 07/1977 | 41121840034 | $36.38 | Shop at ECS Tuning |
