Rear window frame for BMW 1502-2002tii 2002ti (1972)

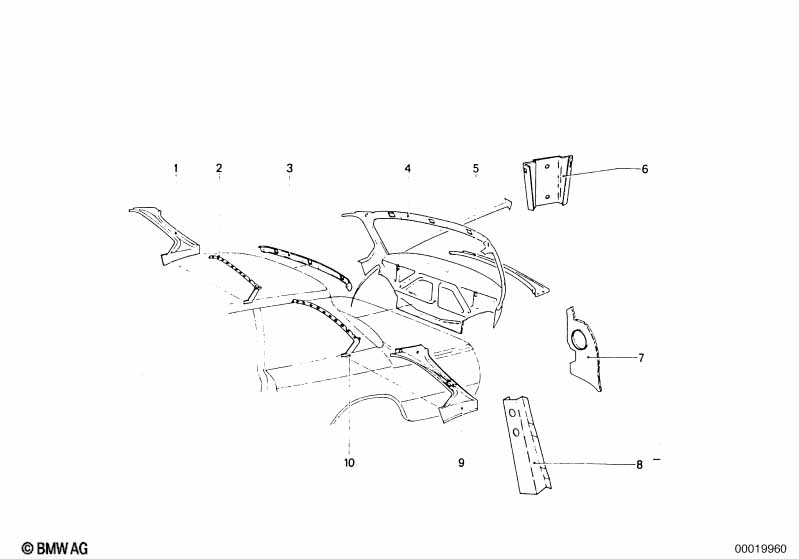

This Rear window frame technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 2002ti. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1972.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 05 | Rear window frame bottom part | 1 | 41321804746 | ENDED | Shop at ECS Tuning | |||||
| 07 | Partition left | 1 | 03/1966 | 07/1977 | 41131822197 | ENDED | Shop at ECS Tuning | |||
| 07 | Partition right | 1 | 03/1966 | 07/1977 | 41131822198 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1502-2002tii 2002ti Rear window frame?
- This technical diagram illustrates the Rear window frame within the Bodywork group for the 1502-2002tii 2002ti produced during 1972. It provides a detailed exploded view of the components, identifying key parts such as the Rear window frame bottom part (Part #41321804746).
- Which models use the hardware listed in this Rear window frame?
- The hardware and components featured in the Rear window frame are specific to the 1502-2002tii 2002ti produced during 1972. These technical specifications ensure that parts like the Rear window frame bottom part (41321804746) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Rear window frame assembly?
- Each item in the Rear window frame corresponds to the numbered list below the illustration. For the 1502-2002tii 2002ti, you can identify the Rear window frame bottom part by locating its position on the schematic, which then links to the official BMW part number 41321804746 for the Bodywork section.
