Front door-window frame/mounting parts for BMW 1502-2002tii 1602 (1972)

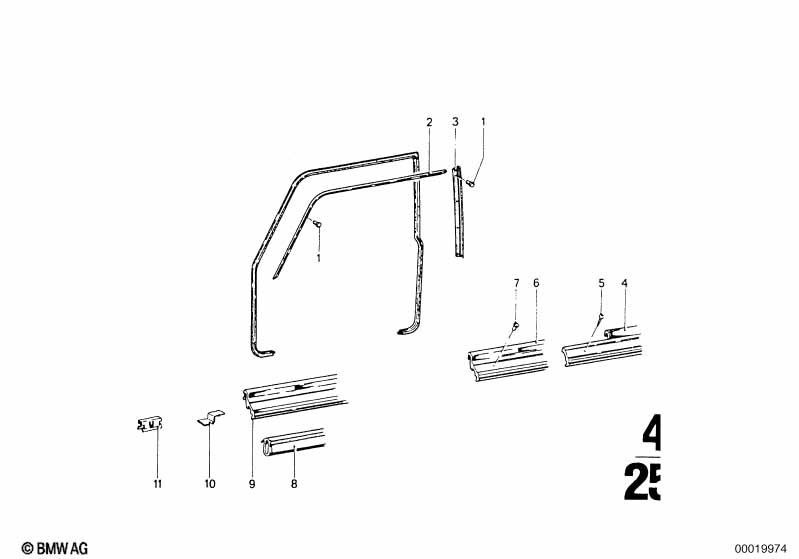

This Front door-window frame/mounting parts technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 1602. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1972.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Rivet | 3,2-3A | 24 | 07129948742 | $0.11 | ENDED | Shop at ECS Tuning | |||
| 02 | Frame left | 1 | 03/1966 | 07/1977 | 51716454239 | $113.45 | ENDED | Shop at ECS Tuning | ||
| 02 | Frame right | 1 | 03/1966 | 07/1977 | 51716454240 | $113.45 | ENDED | Shop at ECS Tuning | ||
| 03 | Cover column B left | CHROM | 1 | 03/1966 | 07/1977 | 51711819817 | $52.85 | Shop at ECS Tuning | ||
| 03 | Cover column B right | CHROM | 1 | 03/1966 | 07/1977 | 51711819818 | $52.85 | Shop at ECS Tuning | ||
| 08 | Gasket | 2 | 03/1971 | 07/1977 | 51471822072 | $33.70 | Shop at ECS Tuning | |||
| 09 | Sill strip | SCHWARZ | 2 | 03/1971 | 08/1973 | 51471808680 | ENDED | Shop at ECS Tuning | ||
| 10 | Clamp | 4 | 03/1971 | 07/1977 | 51471808682 | $1.76 | Shop at ECS Tuning | |||
| 11 | Clamp | 12 | 03/1971 | 07/1977 | 51471800290 | $1.76 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
