Hood for BMW 1502-2002tii 2002 (1973)

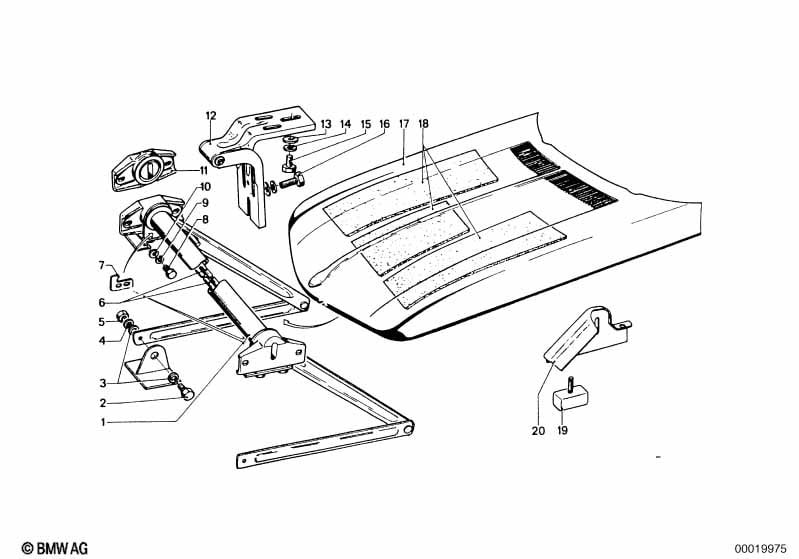

This Hood technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 2002. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1973.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Connection pipe | 1 | 41611815568 | $70.16 | ENDED | Shop at ECS Tuning | ||||
| 02 | Hex bolt | 2 | 51235780131 | $6.90 | Shop at ECS Tuning | |||||
| 03 | Washer | 8,4X24X2-ZNS3 | 4 | 07119904164 | $0.40 | Shop at ECS Tuning | ||||
| 04 | Wave washer | 8,4X15-ZNS3 | 2 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 05 | Hex nut | M8-8-ZNS3 | 2 | 07/1977 | 07119904032 | $0.16 | Shop at ECS Tuning | |||
| 05 | Hex nut | M8-8-ZNNIV SI | 2 | 07119905515 | $0.16 | Shop at ECS Tuning | ||||
| 06 | Torsion spring | 1 | 41615480140 | $58.20 | ENDED | Shop at ECS Tuning | ||||
| 06 | Torsion spring | 1 | 41615480141 | $18.04 | ENDED | Shop at ECS Tuning | ||||
| 07 | Stopper | 2 | 51235480142 | $5.70 | ENDED | Shop at ECS Tuning | ||||
| 08 | Hex bolt | M6X16-SB | 12 | 07119913554 | $4.40 | Shop at ECS Tuning | ||||
| 09 | Wave washer | 8,4X15-ZNS3 | 12 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 10 | Washer | A6,4-ZNNIV SI | 12 | 07119904202 | Shop at ECS Tuning | |||||
| 11 | Holder | 2 | 41611812927 | $49.53 | ENDED | Shop at ECS Tuning | ||||
| 12 | Hinge | 2 | 41615480130 | $54.04 | Shop at ECS Tuning | |||||
| 13 | Washer | 8,4X16X1,6-ZNNV | 12 | 07119907030 | Shop at ECS Tuning | |||||
| 14 | Spring washer | B8 | 12 | 07119933096 | $0.18 | Shop at ECS Tuning | ||||
| 15 | Hex bolt | M8X16-10.9-PHR | 6 | 07119913612 | $0.62 | Shop at ECS Tuning | ||||
| 16 | Hex bolt | M8X20-ZNNIV SI | 6 | 07119903039 | Shop at ECS Tuning | |||||
| 17 | Hood | 1 | 03/1966 | 07/1976 | 41615480000 | $1105.59 | ENDED | Shop at ECS Tuning | ||
| 19 | Bump stop | 2 | 51231819381 | $7.48 | Shop at ECS Tuning | |||||
| 20 | Support left | 1 | 41615480165 | $16.81 | Shop at ECS Tuning | |||||
| 20 | Support right | 1 | 41615480166 | $16.81 | ENDED | Shop at ECS Tuning |
