Engine hood/mounting parts for BMW 1502-2002tii 2002 (1973)

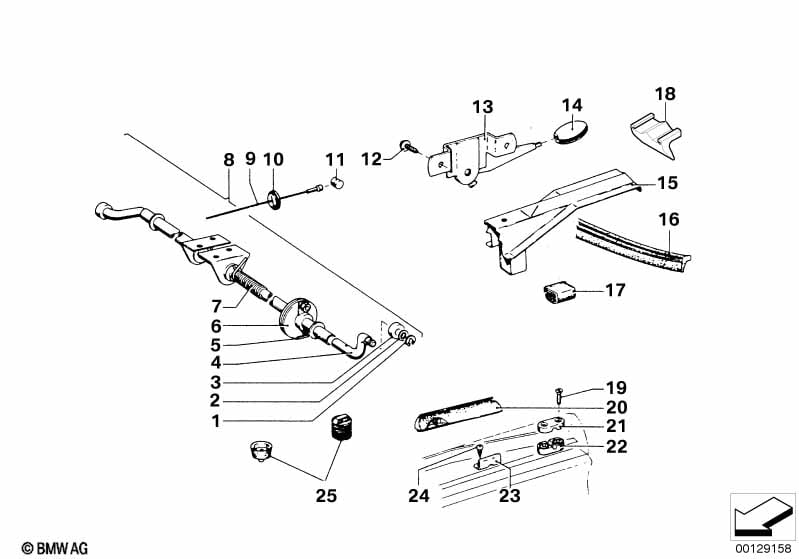

This Engine hood/mounting parts technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 2002. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1973.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Circlip | 6,0-ZNS3 | 2 | 07119905695 | $1.07 | Shop at ECS Tuning | ||||
| 02 | Shim | 1.50MM | 2 | 23311230689 | $0.36 | ENDED | Shop at ECS Tuning | |||
| 03 | Roll pin | 2 | 51235480138 | $3.05 | Shop at ECS Tuning | |||||
| 04 | Bow | 2 | 51235480134 | ENDED | Shop at ECS Tuning | |||||
| 05 | Clamping bush | 4 X 16 | 2 | 07119941365 | ENDED | Shop at ECS Tuning | ||||
| 06 | Cable roller | 1 | 51231813490 | ENDED | Shop at ECS Tuning | |||||
| 07 | Retainer spring | 1 | 41615480169 | $8.15 | ENDED | Shop at ECS Tuning | ||||
| 07 | Retainer spring | 1 | 51231801010 | ENDED | Shop at ECS Tuning | |||||
| 08 | Hood lock | 1 | 51235480136 | ENDED | Shop at ECS Tuning | |||||
| 09 | Bowden cable | 1 | 51235480164 | $15.13 | Shop at ECS Tuning | |||||
| 10 | Grommet | 1 | 51715480172 | ENDED | Shop at ECS Tuning | |||||
| 11 | NIpple | 1 | 07119988505 | $1.73 | Shop at ECS Tuning | |||||
| fitted alternatively | ||||||||||
| 12 | Hex head screw with washer | A6,5X19 | 2 | 51231806882 | $0.77 | Shop at ECS Tuning | ||||
| 12 | Hex bolt | M6X25 | 2 | 52101820255 | $0.35 | ENDED | Shop at ECS Tuning | |||
| 13 | Lever | 1 | 51231801019 | ENDED | Shop at ECS Tuning | |||||
| 14 | Button | 1 | 41335680162 | $14.81 | Shop at ECS Tuning | |||||
| 15 | Cup | 1 | 41615480167 | ENDED | Shop at ECS Tuning | |||||
| 16 | Gasket | 1 | 51235480192 | $33.70 | Shop at ECS Tuning | |||||
| 17 | Stopper | 1 | 41615480193 | $7.53 | ENDED | Shop at ECS Tuning | ||||
| 18 | sealing | 1 | 51235480191 | $40.02 | Shop at ECS Tuning | |||||
| 19 | Csk.fillister head srew | M6X35 | 4 | 07119928533 | $1.79 | ENDED | Shop at ECS Tuning | |||
| 20 | Sealing front | 1 | 41615480195 | $41.17 | Shop at ECS Tuning | |||||
| 20 | SEALING FRONT right | 1 | 41615480196 | $41.17 | Shop at ECS Tuning | |||||
| 21 | Guide | 2 | 41615480156 | $12.76 | ENDED | Shop at ECS Tuning | ||||
| 22 | Guide | 2 | 41615480155 | $12.76 | ENDED | Shop at ECS Tuning | ||||
| 23 | Support | 2 | 41615480170 | $11.59 | Shop at ECS Tuning | |||||
| 24 | Set fillister head screw 20 | M6X16 | 4 | 07509063320 | ENDED | Shop at ECS Tuning | ||||
| 24 | Fillister head screw | M6X16 | 4 | 07119906423 | $0.18 | Shop at ECS Tuning | ||||
| 25 | Stop buffer | 2 | 51231852347 | $2.79 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
