Trunk lid for BMW 1502-2002tii 2002 (1971)

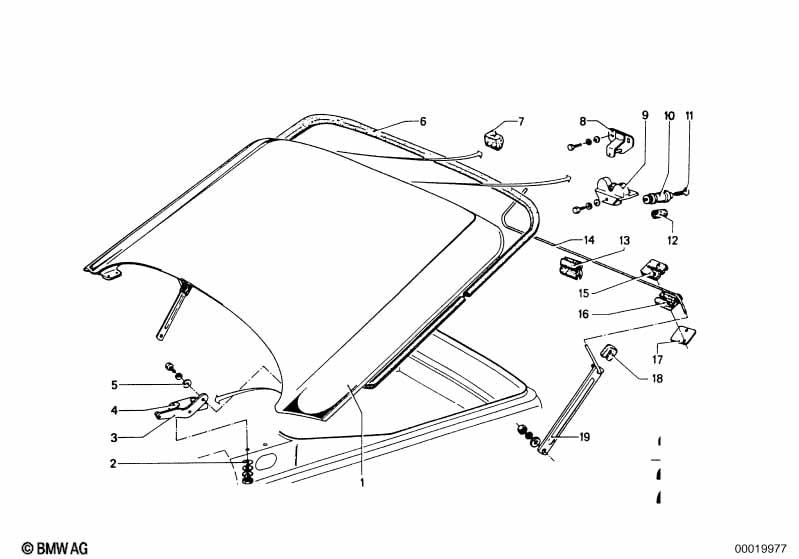

This Trunk lid technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 2002. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Trunk lid | 1 | 41621837074 | $954.30 | ENDED | Shop at ECS Tuning | ||||
| 02 | Washer-gasket | 4 | 51125670140 | $0.50 | Shop at ECS Tuning | |||||
| 03 | Left trunk lid hinge | 1 | 41625476117 | $32.43 | Shop at ECS Tuning | |||||
| 03 | Right trunk lid hinge | 1 | 41625476118 | $32.43 | Shop at ECS Tuning | |||||
| 05 | Washer | A8,4X25 | X | 07147201571 | $0.20 | Shop at ECS Tuning | ||||
| 06 | Gasket | 1 | 51715476161 | $50.12 | Shop at ECS Tuning | |||||

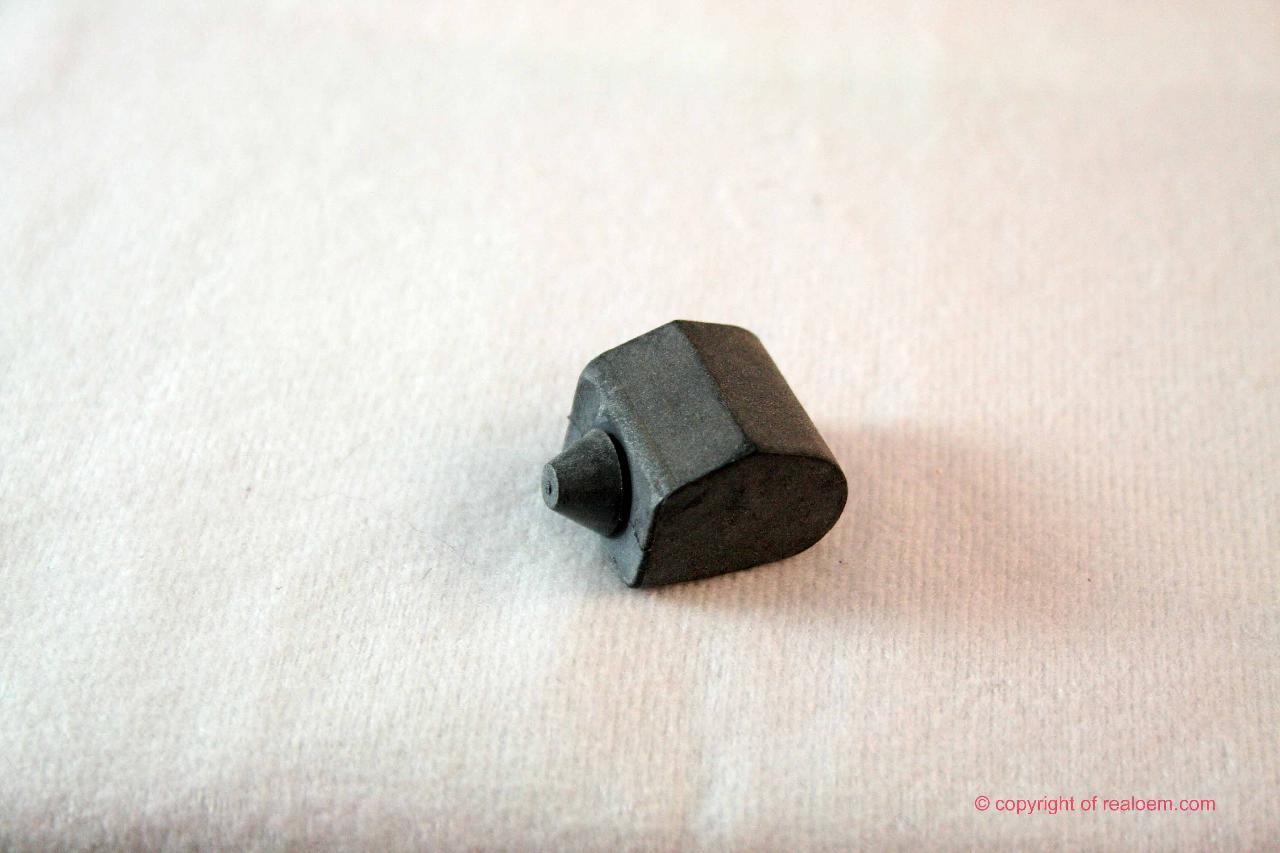

| 07 | Rubber buffer | 2 | 51245476138 | $5.07 | Shop at ECS Tuning | |||||
| 08 | Catch bracket | 1 | 51245476140 | $52.43 | ENDED | Shop at ECS Tuning | ||||

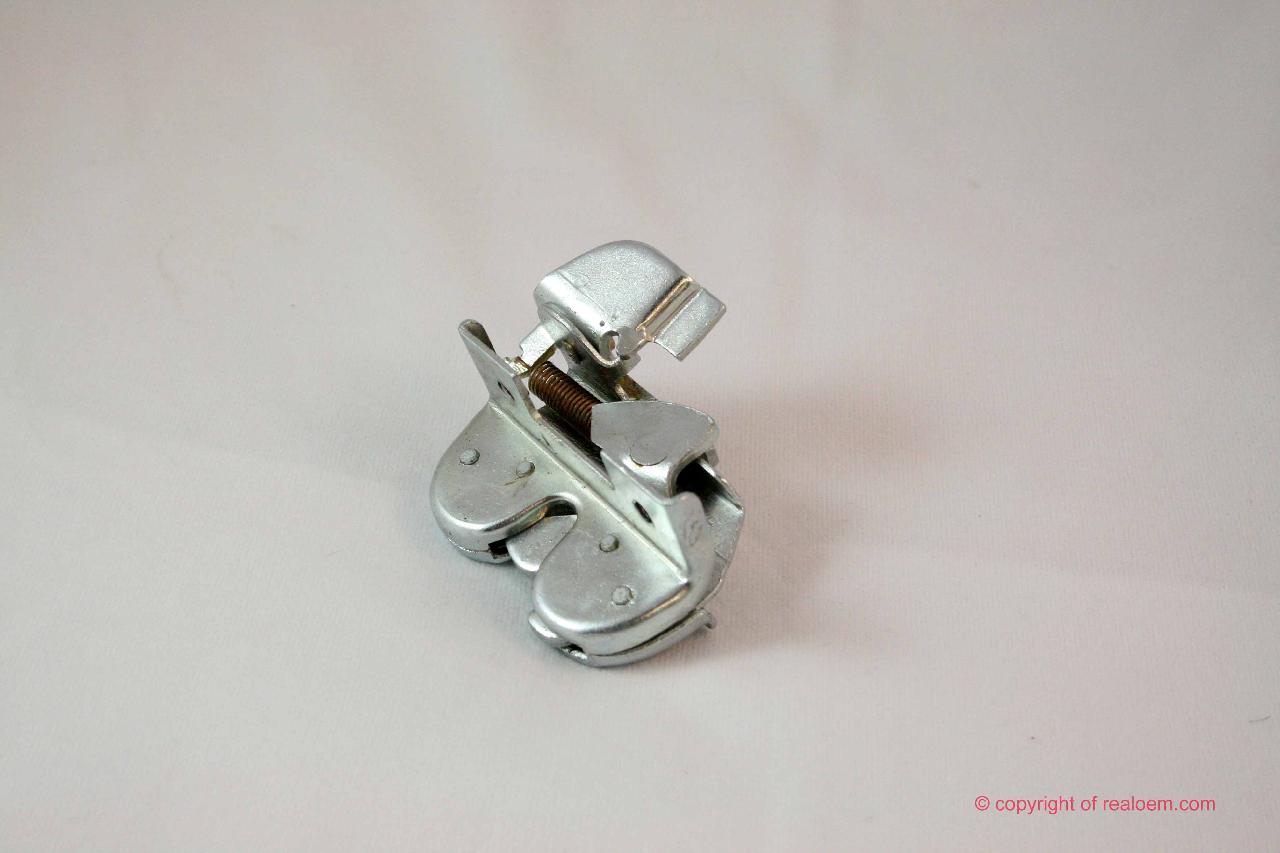

| 09 | Lock | 1 | 51245476142 | $39.74 | ENDED | Shop at ECS Tuning | ||||
| 10 | Catch with key | 1 | 51245476145 | $141.36 | Shop at ECS Tuning | |||||
| 11 | Standard key (blank) | X | 51216642198 | $5.79 | ENDED | Shop at ECS Tuning | ||||
| 11 | Standard key (blank) | PROFIL SX | X | 51246041586 | $6.98 | Shop at ECS Tuning | ||||
| 12 | Sleeve | 1 | 51245676172 | $9.38 | ENDED | Shop at ECS Tuning | ||||
| 13 | Suspension | 2 | 51241804080 | $1.92 | Shop at ECS Tuning | |||||
| 14 | Torsion spring | 2 | 41621815877 | $19.98 | ENDED | Shop at ECS Tuning | ||||
| 16 | Holder | 2 | 41621835765 | $18.53 | ENDED | Shop at ECS Tuning | ||||
| 19 | Lever left | 1 | 41621805863 | $24.17 | ENDED | Shop at ECS Tuning | ||||
| 19 | Lever right | 1 | 41621805864 | $25.53 | Shop at ECS Tuning |
