Trunk lid for BMW 1502-2002tii 1802 (1973)

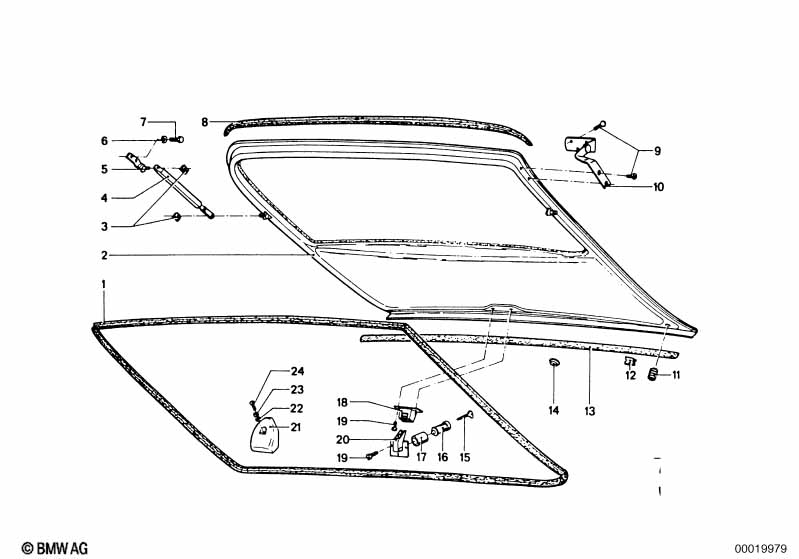

This Trunk lid technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 1802. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1973.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Trunk lid sealing | 1 | 51241808752 | $108.47 | Shop at ECS Tuning | |||||
| 02 | Trunk lid | 1 | 41621808727 | $1047.41 | ENDED | Shop at ECS Tuning | ||||
| 03 | Clamp | A6 | 4 | 07129934910 | $0.66 | Shop at ECS Tuning | ||||
| 04 | Gas pressurized spring | 2 | 51241803128 | $123.09 | Shop at ECS Tuning | |||||
| 06 | Spring washer | B6 | 4 | 07119933082 | $0.09 | Shop at ECS Tuning | ||||
| 07 | Fillister-head screw | M6X18 | 4 | 07119919781 | ENDED | Shop at ECS Tuning | ||||
| 08 | Upper sealing | 1 | 51711804576 | $75.83 | ENDED | Shop at ECS Tuning | ||||
| 09 | Countersunk head screw | M8X20 | 10 | 07119900869 | $0.45 | Shop at ECS Tuning | ||||
| 10 | Hinge | 1 | 41621803239 | ENDED | Shop at ECS Tuning | |||||
| 10 | Hinge | 1 | 41621803240 | ENDED | Shop at ECS Tuning | |||||
| 11 | Stop buffer | 2 | 51231852347 | $2.79 | Shop at ECS Tuning | |||||
| 12 | Clamp | 5 | 51135676194 | $1.93 | Shop at ECS Tuning | |||||
| 13 | Cover strip, rear | 1 | 51241803324 | $130.02 | Shop at ECS Tuning | |||||
| 15 | Standard key (blank) | X | 51216642198 | $5.79 | ENDED | Shop at ECS Tuning | ||||
| 15 | Standard key (blank) | PROFIL SX | X | 51246041586 | $6.98 | Shop at ECS Tuning | ||||
| 16 | Catch with key | 1 | 51245476145 | $141.36 | Shop at ECS Tuning | |||||
| 17 | Sleeve | 1 | 51245676172 | $9.38 | ENDED | Shop at ECS Tuning | ||||
| 18 | Lock | 1 | 51241822098 | ENDED | Shop at ECS Tuning | |||||
| 19 | Hex bolt with washer | M6X20-Z3-2 | 5 | 07119915032 | ENDED | Shop at ECS Tuning | ||||
| 20 | Lock | 1 | 51241826958 | ENDED | Shop at ECS Tuning | |||||
| 21 | Covering cap | 1 | 51241826959 | ENDED | Shop at ECS Tuning | |||||
| 22 | Tooth washer | A4,3 | 1 | 07119936037 | $0.36 | Shop at ECS Tuning | ||||
| 23 | Tooth washer | A4,3 | 1 | 07119936037 | $0.36 | Shop at ECS Tuning | ||||
| 24 | Set fillister head screw 20 | M4X10 | 1 | 07509064414 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
