Front door control/door lock for BMW 1502-2002tii 2002 (1975)

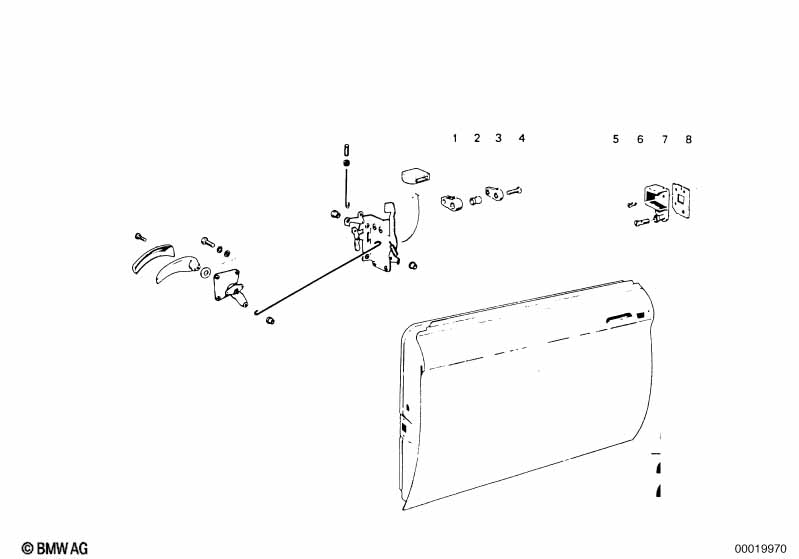

This Front door control/door lock technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 2002. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1975.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Does not fit door / Twist lock |
||||||||||
| 01 | Bump stop | 2 | 51211823487 | $6.36 | Shop at ECS Tuning | |||||
| 02 | Bush | 2 | 51211823488 | $1.38 | Shop at ECS Tuning | |||||
| 03 | Plate | 2 | 51211874709 | $11.68 | ENDED | Shop at ECS Tuning | ||||
| 04 | Countersunk head screw | M6X12 | 4 | 07119928511 | $0.07 | Shop at ECS Tuning | ||||
| 05 | Countersunk head screw | M6X16-8.8-ZNS3 | 8 | 07119904304 | $0.25 | Shop at ECS Tuning | ||||
| 06 | Countersunk head screw | M8X35 | 2 | 07119928180 | $1.63 | Shop at ECS Tuning | ||||
| 07 | Latch Striker, left | 1 | 51211852263 | $37.49 | Shop at ECS Tuning | |||||
| 07 | Latch Striker, right | 1 | 51211852264 | $37.49 | Shop at ECS Tuning | |||||
| 08 | Locker plate left | 1 | 51211851493 | $4.06 | Shop at ECS Tuning | |||||
| 08 | Locker plate right | 1 | 51211851494 | $4.06 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
