Front body parts for BMW 1500-2000CS 2000C (1968)

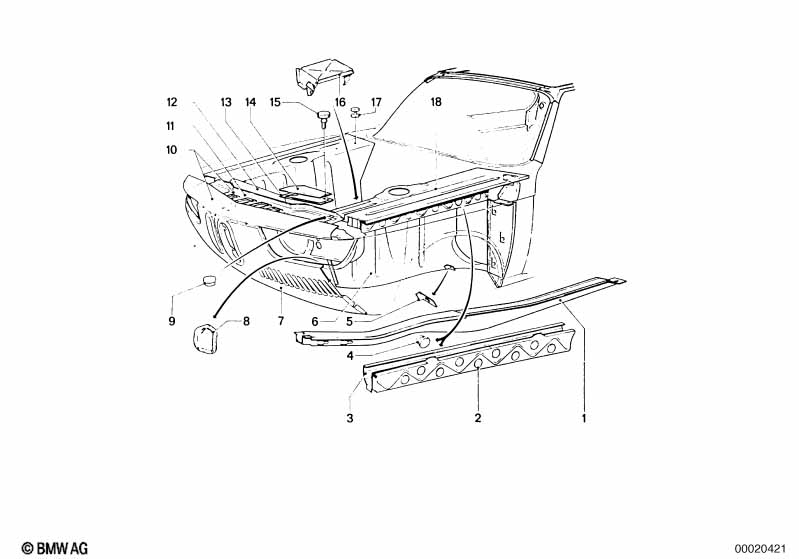

This Front body parts technical drawing provides a detailed breakdown of the assembly for the 1500-2000CS 2000C. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1968.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Complete left engine support | 1 | 41115603103 | ENDED | Shop at ECS Tuning | |||||
| 01 | Complete right engine support | 1 | 41115603104 | ENDED | Shop at ECS Tuning | |||||
| 02 | Holder | 1 | 41145703155 | ENDED | Shop at ECS Tuning | |||||
| 02 | Holder | 1 | 41145703156 | ENDED | Shop at ECS Tuning | |||||
| 03 | Carrier | 1 | 41145703150 | ENDED | Shop at ECS Tuning | |||||
| 03 | Carrier | 1 | 41145703151 | ENDED | Shop at ECS Tuning | |||||
| 06 | Wheel arch | 1 | 41145703135 | ENDED | Shop at ECS Tuning | |||||
| 06 | Wheel arch | 1 | 41145703136 | ENDED | Shop at ECS Tuning | |||||
| 07 | Trim panel | 1 | 41335780101 | ENDED | Shop at ECS Tuning | |||||
| 08 | Holder | 1 | 41135703185 | ENDED | Shop at ECS Tuning | |||||
| 08 | Holder | 1 | 41135703186 | ENDED | Shop at ECS Tuning | |||||
| 10 | Trim panel | 1 | 41335780107 | ENDED | Shop at ECS Tuning | |||||
| 11 | Protective COVER | 1 | 41145703191 | ENDED | Shop at ECS Tuning | |||||
| 14 | Cover left | 1 | 63115780209 | ENDED | Shop at ECS Tuning | |||||
| 14 | Cover | 1 | 63115780210 | ENDED | Shop at ECS Tuning | |||||
| 15 | Knurled bolt | 8 | 63115780220 | ENDED | Shop at ECS Tuning | |||||
| 18 | Holder | 1 | 41145703180 | ENDED | Shop at ECS Tuning | |||||
| 18 | Holder | 1 | 41145703181 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
