Front door-window frame/mounting parts for BMW 1500-2000CS 2000C (1970)

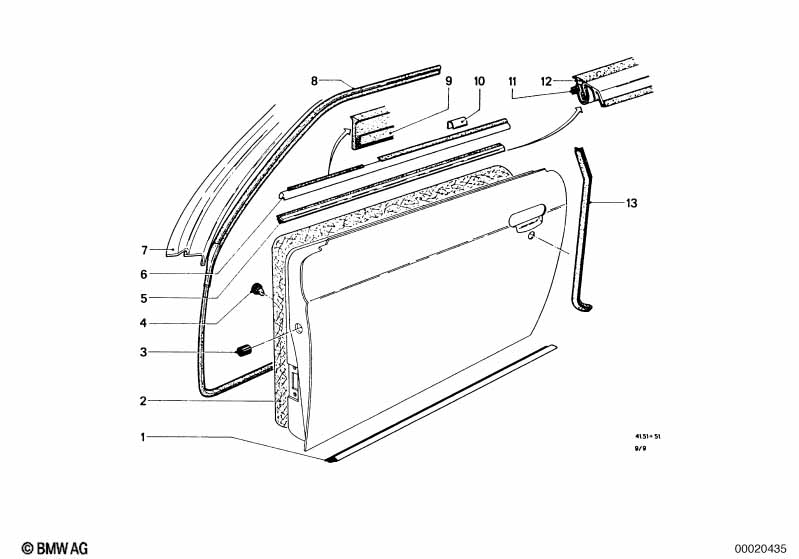

This Front door-window frame/mounting parts technical drawing provides a detailed breakdown of the assembly for the 1500-2000CS 2000C. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1970.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Gasket | 2 | 51216740185 | $24.21 | Shop at ECS Tuning | |||||
| 03 | Bump stop | 2 | 51216041760 | $3.27 | Shop at ECS Tuning | |||||
| 04 | Plug | 2 | 41516754244 | $0.59 | ENDED | Shop at ECS Tuning | ||||
| 05 | Synthetic strip | X | 54129734126 | $1.95 | Shop at ECS Tuning | |||||
| 06 | Cover strip, left | 1 | 51216754320 | ENDED | Shop at ECS Tuning | |||||
| 07 | Frame | 1 | 51716754285 | $130.02 | ENDED | Shop at ECS Tuning | ||||
| 07 | Frame | 1 | 51716754286 | $130.02 | ENDED | Shop at ECS Tuning | ||||
| 08 | Door weatherstrip left | 1 | 51716754282 | $423.30 | Shop at ECS Tuning | |||||
| 08 | Door weatherstrip right | 1 | 51716754283 | $400.80 | Shop at ECS Tuning | |||||
| 09 | sealing | 2 | 51216754323 | ENDED | Shop at ECS Tuning | |||||
| 10 | Clamp | 12 | 51211803685 | $1.93 | Shop at ECS Tuning | |||||
| 11 | Brush | 1 | 51211816761 | $15.01 | ENDED | Shop at ECS Tuning | ||||
| 11 | Brush | RECHTS | 1 | 51211816762 | ENDED | Shop at ECS Tuning | ||||
| 12 | Rubber seal | X | 51211813195 | $19.44 | Shop at ECS Tuning | |||||
| 13 | Gasket left | 1 | 51216740180 | $134.56 | Shop at ECS Tuning | |||||
| 13 | Gasket right | 1 | 51216740181 | $134.56 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
