Rear door - hinge/door brake for BMW 1500-2000CS 1800 (1971)

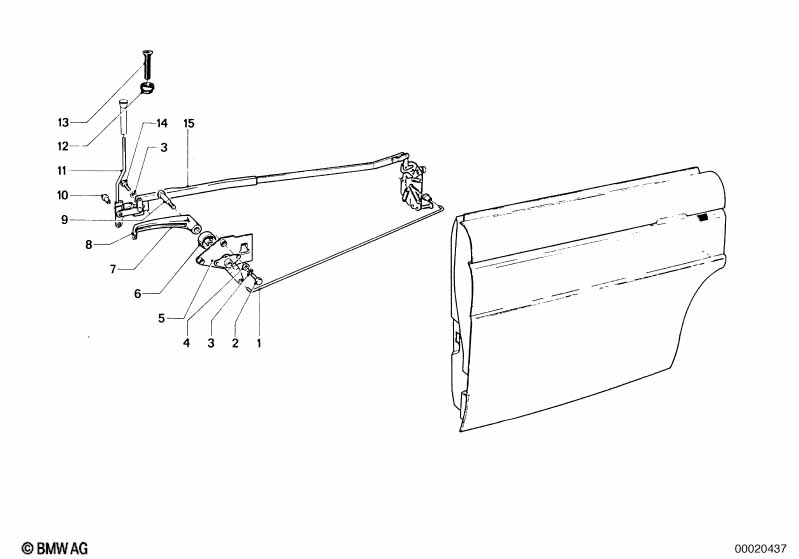

This Rear door - hinge/door brake technical drawing provides a detailed breakdown of the assembly for the 1500-2000CS 1800. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Late version | ||||||||||
| 01 | Connection rod | 2 | 09/1963 | 01/1972 | 51221802591 | $3.43 | ENDED | Shop at ECS Tuning | ||
| 02 | Hex bolt | M5X12-8.8 ZN | 4 | 07119913231 | $1.42 | Shop at ECS Tuning | ||||
| 03 | Tooth washer | A5,1 | 8 | 07119936107 | $0.18 | Shop at ECS Tuning | ||||
| 04 | Washer | A6,4-200HV-ZNS3 | 4 | 07119903791 | $0.11 | Shop at ECS Tuning | ||||
| Late version | ||||||||||
| 05 | Remote control left | 1 | 09/1963 | 01/1972 | 51211800665 | $9.77 | Shop at ECS Tuning | |||
| 05 | Remote control right | 1 | 09/1963 | 01/1972 | 51211800666 | $9.77 | Shop at ECS Tuning | |||
| 07 | Handle left | 1 | 09/1963 | 01/1972 | 51211806003 | $38.11 | Shop at ECS Tuning | |||
| 07 | Handle right | 1 | 09/1963 | 01/1972 | 51211806004 | $38.11 | Shop at ECS Tuning | |||
| 08 | Covering left | 1 | 09/1963 | 01/1972 | 51211803751 | $4.61 | Shop at ECS Tuning | |||
| 08 | Covering right | 1 | 09/1963 | 01/1972 | 51211803752 | $4.61 | Shop at ECS Tuning | |||
| 10 | Grommet | 6 | 52208238999 | $0.40 | Shop at ECS Tuning | |||||
| 11 | Operating rod | 1 | 51226642080 | ENDED | Shop at ECS Tuning | |||||
| 11 | Operating rod | 1 | 51226642081 | ENDED | Shop at ECS Tuning | |||||
| 12 | Grommet | 2 | 51226654104 | ENDED | Shop at ECS Tuning | |||||
| 13 | Button | 2 | 51216654120 | $2.40 | ENDED | Shop at ECS Tuning | ||||
| 15 | Connection rod | 1 | 51226642030 | ENDED | Shop at ECS Tuning | |||||
| 15 | Connection rod | 1 | 51226642031 | ENDED | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1500-2000CS 1800 Rear door - hinge/door brake?
- This technical diagram illustrates the Rear door - hinge/door brake within the Bodywork group for the 1500-2000CS 1800 produced during 1971. It provides a detailed exploded view of the components, identifying key parts such as the Connection rod (Part #51221802591).
- Which models use the hardware listed in this Rear door - hinge/door brake?
- The hardware and components featured in the Rear door - hinge/door brake are specific to the 1500-2000CS 1800 produced during 1971. These technical specifications ensure that parts like the Connection rod (51221802591) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Rear door - hinge/door brake assembly?
- Each item in the Rear door - hinge/door brake corresponds to the numbered list below the illustration. For the 1500-2000CS 1800, you can identify the Connection rod by locating its position on the schematic, which then links to the official BMW part number 51221802591 for the Bodywork section.
