Engine hood/mounting parts for BMW 1500-2000CS 1800ti (1966)

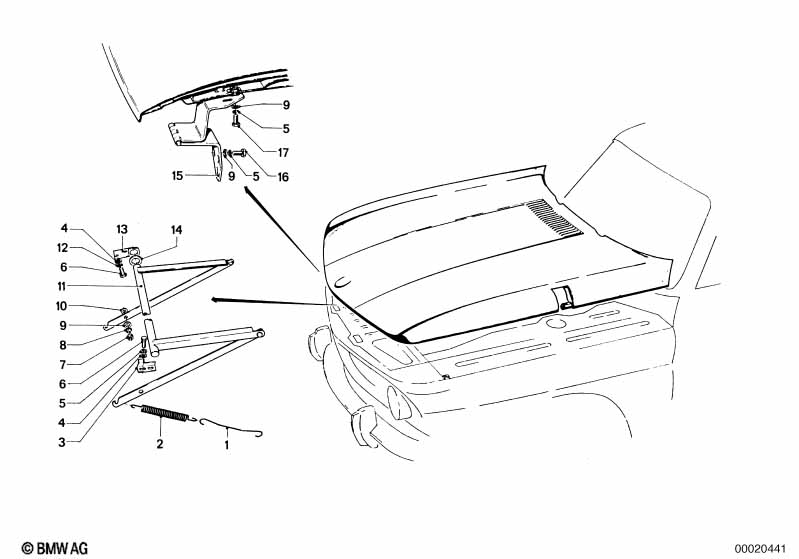

This Engine hood/mounting parts technical drawing provides a detailed breakdown of the assembly for the 1500-2000CS 1800ti. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1966.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Connection rod | 1 | 51235780164 | ENDED | Shop at ECS Tuning | |||||
| 02 | Tension spring | 2 | 51235680153 | ENDED | Shop at ECS Tuning | |||||
| 03 | Impact plate | 1 | 51235680145 | ENDED | Shop at ECS Tuning | |||||
| 03 | Impact plate | 1 | 51235680146 | ENDED | Shop at ECS Tuning | |||||
| 04 | Washer | A6,4-ZNNIV SI | 4 | 07119904202 | Shop at ECS Tuning | |||||
| 05 | Spring washer | B6 | 20 | 07119933082 | $0.09 | Shop at ECS Tuning | ||||
| 06 | Hex bolt | M6X16-8.8-ZNS3 | 8 | 07119904357 | $0.36 | Shop at ECS Tuning | ||||
| 07 | Hex nut | M8-8-ZNS3 | 2 | 01/1972 | 07119904032 | $0.16 | Shop at ECS Tuning | |||
| 07 | Hex nut | M8-8-ZNNIV SI | 2 | 07119905515 | $0.16 | Shop at ECS Tuning | ||||
| 08 | Spring washer | B8 | 2 | 07119933096 | $0.18 | Shop at ECS Tuning | ||||
| 09 | Washer | 8,4X16X1,6-ZNNV | 16 | 07119907030 | Shop at ECS Tuning | |||||
| 11 | Support | 1 | 51231807427 | $50.22 | ENDED | Shop at ECS Tuning | ||||
| 12 | Wave washer | B6 | 4 | 07119932072 | $0.09 | ENDED | Shop at ECS Tuning | |||
| 13 | Suspension left | 1 | 51235680149 | ENDED | Shop at ECS Tuning | |||||
| 14 | Suspension right | 1 | 51235680150 | ENDED | Shop at ECS Tuning | |||||
| 15 | Hinge | 2 | 41615680131 | ENDED | Shop at ECS Tuning | |||||
| 16 | Hex bolt | M8X25 | 6 | 34331152651 | $12.34 | Shop at ECS Tuning | ||||
| 17 | Hex bolt | M8X20-ZNNIV SI | 6 | 07119903039 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
