Body-side frame-side member/columns for BMW 2.5CS-3.0CSL 3.0CSL (1973)

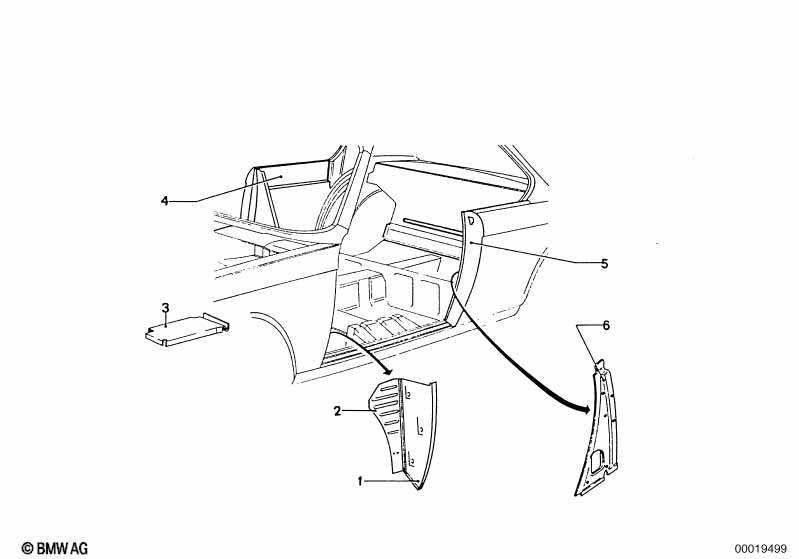

This Body-side frame-side member/columns technical drawing provides a detailed breakdown of the assembly for the 2.5CS-3.0CSL 3.0CSL. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1973.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Left exterior column A | 1 | 41211814147 | $873.27 | ENDED | Shop at ECS Tuning | ||||
| 01 | Column A exterior right | 1 | 41211814148 | $873.27 | ENDED | Shop at ECS Tuning | ||||
| 02 | Covering plate column front left | 1 | 41211814059 | $264.49 | ENDED | Shop at ECS Tuning | ||||
| 02 | Covering plate column front right | 1 | 41211814060 | $228.78 | ENDED | Shop at ECS Tuning | ||||
| 03 | Covering plate | 1 | 41211833025 | ENDED | Shop at ECS Tuning | |||||
| 03 | Covering plate | 1 | 41211833026 | ENDED | Shop at ECS Tuning | |||||
| 04 | Reinforcement left | 1 | 41355790010 | ENDED | Shop at ECS Tuning | |||||
| 04 | Reinforcement right | 1 | 41355790011 | $170.75 | ENDED | Shop at ECS Tuning | ||||
| 05 | Column rear left | 1 | 41211814213 | ENDED | Shop at ECS Tuning | |||||
| 05 | Column rear right | 1 | 41211814214 | ENDED | Shop at ECS Tuning | |||||
| 06 | Column rear left | 1 | 41215730130 | ENDED | Shop at ECS Tuning | |||||
| 06 | Column rear right | 1 | 41215730131 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
