Door, front for BMW 2.5CS-3.0CSL 3.0CS (1973)

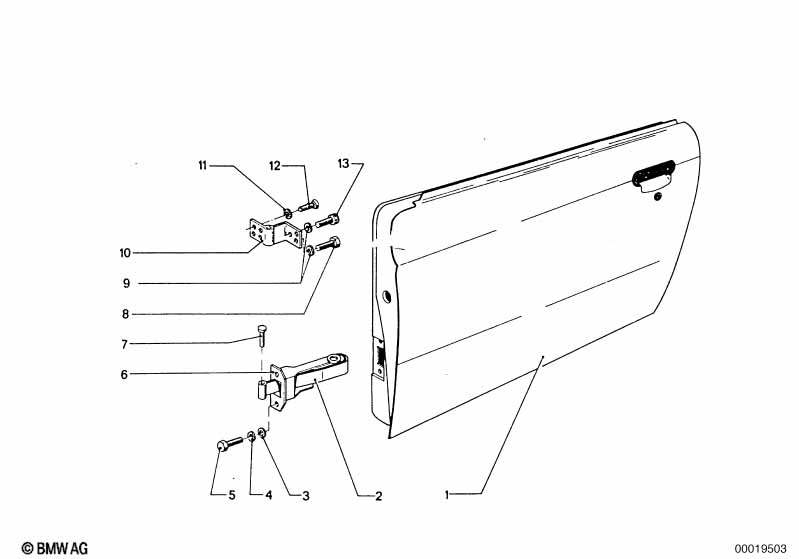

This Door, front technical drawing provides a detailed breakdown of the assembly for the 2.5CS-3.0CSL 3.0CS. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1973.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Door left | 1 | 12/1968 | 11/1975 | 41511814107 | $2564.97 | ENDED | Shop at ECS Tuning | ||
| 01 | Door right | 1 | 12/1968 | 11/1975 | 41511814108 | $2618.03 | Shop at ECS Tuning | |||
| 02 | Door brake | 2 | 51210301600 | $129.56 | +core | Shop at ECS Tuning | ||||
| 03 | Washer | A6,4-200HV-ZNS3 | 4 | 07119903791 | $0.11 | Shop at ECS Tuning | ||||
| 04 | Wave washer | B6 | 4 | 07119932072 | $0.09 | ENDED | Shop at ECS Tuning | |||
| 05 | Hex bolt | M6X18 | 4 | 23317545769 | $0.67 | Shop at ECS Tuning | ||||
| 06 | Stopper | 2 | 51211819365 | ENDED | Shop at ECS Tuning | |||||
| 07 | Rivet | 4 | 51216650054 | $1.46 | Shop at ECS Tuning | |||||
| 08 | Hex bolt | M8X22-8.8-ZNS3 | 10 | 07119904040 | Shop at ECS Tuning | |||||
| 09 | Wave washer | 8,4X15-ZNS3 | 12 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 10 | Hinge | 4 | 12/1968 | 11/1975 | 41516750000 | $66.51 | ENDED | Shop at ECS Tuning | ||
| 11 | Washer | V8,4 | 16 | 07119936640 | $0.20 | ENDED | Shop at ECS Tuning | |||
| 12 | Countersunk head screw | M8X20 | 16 | 07119900869 | $0.45 | Shop at ECS Tuning | ||||
| 13 | Fillister-head screw | M8X25-8.8 ZN | 2 | 11/1975 | 07119919978 | $0.30 | ENDED | Shop at ECS Tuning | ||
| 13 | ISA screw | M8X25-10.9-ZNS3 | 2 | 07129904477 | $2.00 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
