Hood for BMW 2.5CS-3.0CSL 3.0CSi

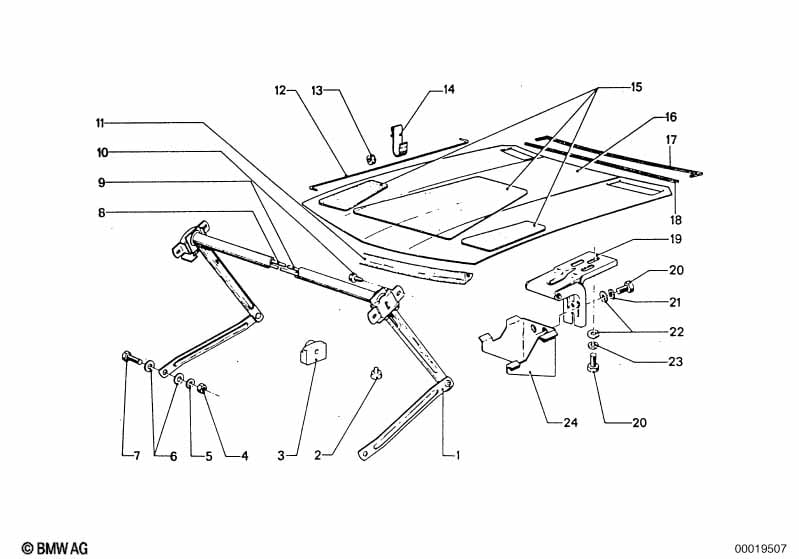

This Hood technical drawing provides a detailed breakdown of the assembly for the 2.5CS-3.0CSL 3.0CSi. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Support | 1 | 03/1969 | 11/1975 | 41611814312 | $130.60 | ENDED | Shop at ECS Tuning | ||
| 02 | Stop buffer | 4 | 51231852347 | $2.79 | Shop at ECS Tuning | |||||
| 03 | Holder | 2 | 12/1968 | 11/1975 | 41615480146 | $49.93 | Shop at ECS Tuning | |||
| 04 | Hex nut | M8-8-ZNS3 | 2 | 12/1968 | 11/1975 | 07119904032 | $0.16 | Shop at ECS Tuning | ||
| 04 | Hex nut | M8-8-ZNNIV SI | 2 | 12/1968 | 11/1975 | 07119905515 | $0.16 | Shop at ECS Tuning | ||
| 05 | Wave washer | 8,4X15-ZNS3 | 6 | 12/1968 | 11/1975 | 07119904115 | $0.09 | Shop at ECS Tuning | ||
| 06 | Washer | 8,4X24X2-ZNS3 | 4 | 12/1968 | 11/1975 | 07119904164 | $0.40 | Shop at ECS Tuning | ||
| 07 | Hex bolt | 2 | 12/1968 | 11/1975 | 51235780131 | $6.90 | Shop at ECS Tuning | |||
| 08 | Torsion spring right | 1 | 12/1968 | 11/1975 | 41611810318 | $18.12 | ENDED | Shop at ECS Tuning | ||
| 09 | Torsion spring left | 1 | 12/1968 | 11/1975 | 41611810317 | $18.12 | ENDED | Shop at ECS Tuning | ||
| 10 | Hex head screw | ST6,3X13-C | 4 | 12/1968 | 11/1975 | 07119916823 | $0.13 | ENDED | Shop at ECS Tuning | |
| 11 | Rubber seal | 2 | 51711810529 | $36.93 | Shop at ECS Tuning | |||||
| 15 | Sound absorber | SET | 1 | 12/1968 | 11/1975 | 51481811883 | $110.56 | Shop at ECS Tuning | ||
| 16 | Hood | 1 | 12/1968 | 11/1975 | 41611817984 | $1479.67 | ENDED | Shop at ECS Tuning | ||
| 17 | Gasket | 1 | 51715780175 | $95.11 | Shop at ECS Tuning | |||||
| 18 | Rubber seal | 1 | 51711810531 | $59.32 | Shop at ECS Tuning | |||||
| 19 | Hinge | 2 | 41611800342 | $44.91 | ENDED | Shop at ECS Tuning | ||||
| 20 | Hex bolt | M8X16-10.9-PHR | 6 | 07119913612 | $0.62 | Shop at ECS Tuning | ||||
| 21 | Spring washer | B8 | 6 | 07119933096 | $0.18 | Shop at ECS Tuning | ||||
| 22 | Washer | 8,4X16X1,6-ZNNV | 6 | 07119907030 | Shop at ECS Tuning | |||||
| 23 | Wave washer | 8,4X15-ZNS3 | 12 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 24 | Support left | 1 | 12/1968 | 11/1975 | 41331814093 | $22.60 | ENDED | Shop at ECS Tuning | ||
| 24 | Support right | 1 | 12/1968 | 11/1975 | 41331814094 | $31.25 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
