Trunk lid, hinge, latch for BMW 2.5CS-3.0CSL 2800CS

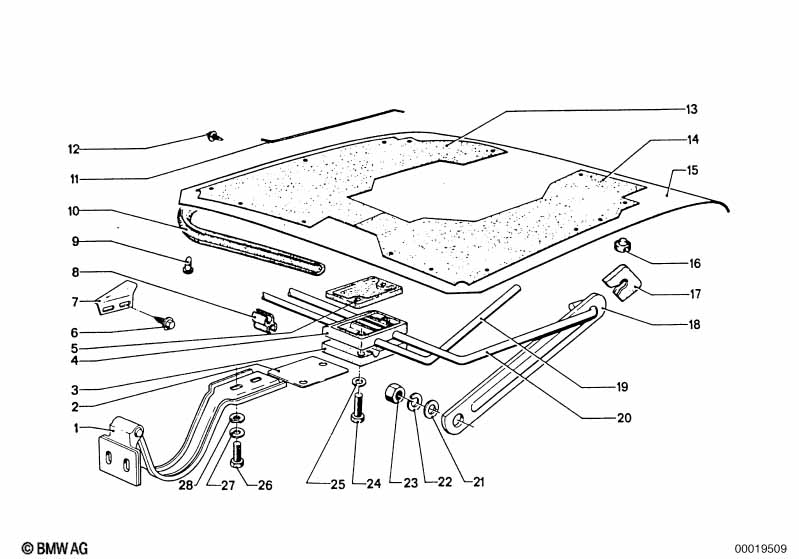

This Trunk lid, hinge, latch technical drawing provides a detailed breakdown of the assembly for the 2.5CS-3.0CSL 2800CS. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Hinge | 2 | 41615780120 | ENDED | Shop at ECS Tuning | |||||
| 03 | Holder | 2 | 12/1968 | 11/1975 | 41625776127 | ENDED | Shop at ECS Tuning | |||
| 04 | Holder | 2 | 12/1968 | 11/1975 | 41625676225 | ENDED | Shop at ECS Tuning | |||
| 05 | Spacer | 2 | 41621810290 | $2.28 | ENDED | Shop at ECS Tuning | ||||
| 06 | Sheet metal screw | B6,5X16 | 4 | 12/1968 | 11/1975 | 12138530118 | $0.40 | ENDED | Shop at ECS Tuning | |
| 07 | Stopper | 1 | 12/1968 | 11/1975 | 41621802017 | ENDED | Shop at ECS Tuning | |||
| 07 | Stopper | 1 | 12/1968 | 11/1975 | 41621802018 | ENDED | Shop at ECS Tuning | |||
| 08 | Suspension | 3 | 12/1968 | 11/1975 | 41625676221 | $2.59 | ENDED | Shop at ECS Tuning | ||
| 09 | Plug | 1 | 41516754244 | $0.59 | ENDED | Shop at ECS Tuning | ||||
| 10 | Gasket | 1 | 51715776161 | $118.62 | +core | Shop at ECS Tuning | ||||
| 12 | Clamp | 14 | 51411870718 | $0.24 | Shop at ECS Tuning | |||||
| 13 | Trim panel | 1 | 51471811488 | ENDED | Shop at ECS Tuning | |||||
| 14 | Trim panel | 1 | 51471811487 | ENDED | Shop at ECS Tuning | |||||
| 15 | Trunk lid | 1 | 12/1968 | 11/1975 | 41621814141 | $1472.18 | ENDED | Shop at ECS Tuning | ||
| 16 | Stop buffer | 2 | 51231852347 | $2.79 | Shop at ECS Tuning | |||||
| 17 | Guide | 2 | 12/1968 | 11/1975 | 51245676219 | ENDED | Shop at ECS Tuning | |||
| 18 | Support | 2 | 12/1968 | 11/1975 | 41625776110 | ENDED | Shop at ECS Tuning | |||
| 19 | Torsion spring right | 1 | 12/1968 | 11/1975 | 41621810282 | ENDED | Shop at ECS Tuning | |||
| 20 | Torsion spring left | 1 | 12/1968 | 11/1975 | 41621810281 | $37.39 | ENDED | Shop at ECS Tuning | ||
| 21 | Washer | 8,4X24X2-ZNS3 | 2 | 12/1968 | 11/1975 | 07119904164 | $0.40 | Shop at ECS Tuning | ||
| 22 | Wave washer | 8,4X15-ZNS3 | 6 | 12/1968 | 11/1975 | 07119904115 | $0.09 | Shop at ECS Tuning | ||
| 23 | Hex nut | M8-8-ZNS3 | 2 | 12/1968 | 11/1975 | 07119904032 | $0.16 | Shop at ECS Tuning | ||
| 23 | Hex nut | M8-8-ZNNIV SI | 2 | 12/1968 | 11/1975 | 07119905515 | $0.16 | Shop at ECS Tuning | ||
| 24 | Hex bolt | M6X40 | 4 | 12/1968 | 11/1975 | 07119912310 | $0.43 | Shop at ECS Tuning | ||
| 25 | Wave washer | B6 | 4 | 07119932072 | $0.09 | ENDED | Shop at ECS Tuning | |||
| 26 | Hex bolt | M8X22 | 4 | 07119913482 | ENDED | Shop at ECS Tuning | ||||
| 27 | Washer | 8,4X16X1,6-ZNNV | 4 | 07119907030 | Shop at ECS Tuning | |||||
| 28 | Wave washer | 8,4X15-ZNS3 | 4 | 07119904115 | $0.09 | Shop at ECS Tuning |
