Forward structure for BMW 2500-3.3Li 3.0Si (1977)

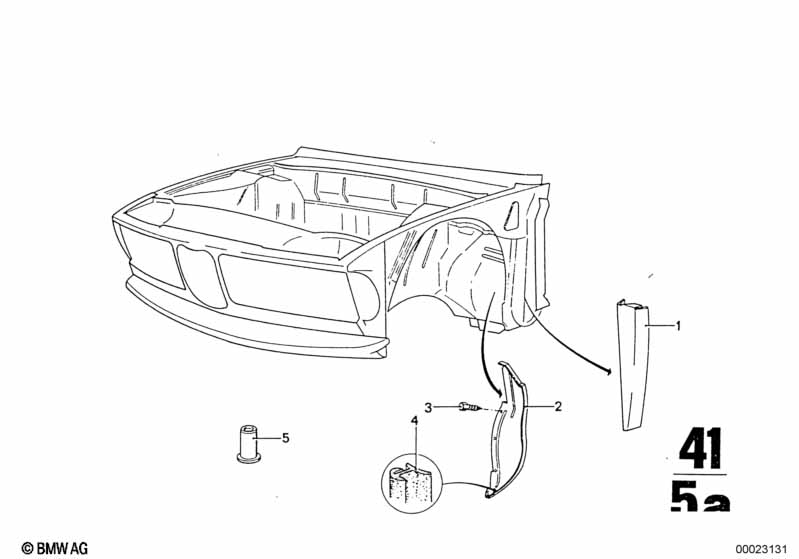

This Forward structure technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.0Si. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1977.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Covering plate | 1 | 41141813687 | $10.89 | ENDED | Shop at ECS Tuning | ||||
| 01 | Covering plate | 1 | 41141813688 | $9.89 | ENDED | Shop at ECS Tuning | ||||
| 02 | Covering plate, left | 1 | 51711809791 | $28.21 | ENDED | Shop at ECS Tuning | ||||
| 02 | Covering plate, right | 1 | 51711809792 | $28.21 | ENDED | Shop at ECS Tuning | ||||
| 03 | Hex head screw | ST4,8X13-ZN3 | 10 | 07119904285 | $0.38 | Shop at ECS Tuning | ||||
| 04 | Rubber seal | 2 | 51711805979 | ENDED | Shop at ECS Tuning |
