Mounting parts for trunk floor panel for BMW 2500-3.3Li 3.0SBav (1973)

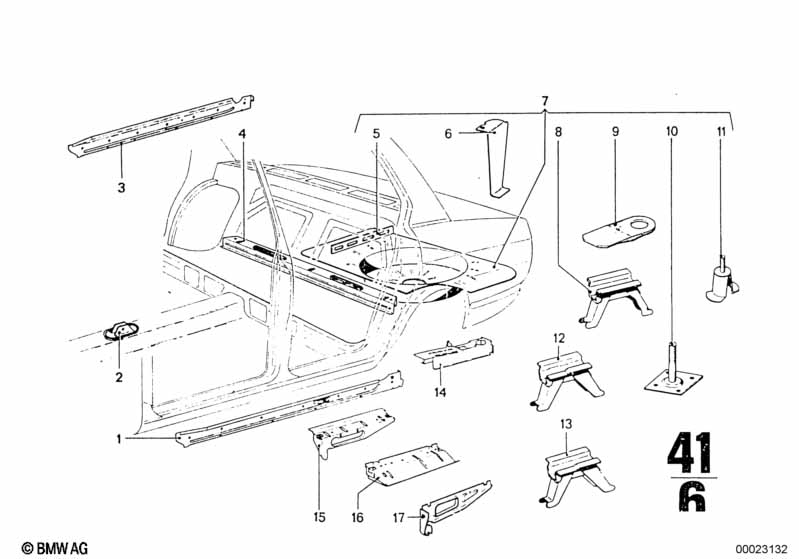

This Mounting parts for trunk floor panel technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.0SBav. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1973.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Left side member | 1 | 08/1968 | 02/1977 | 41111831741 | ENDED | Shop at ECS Tuning | |||
| 02 | Supporting bracket | 1 | 41121847796 | $16.96 | ENDED | Shop at ECS Tuning | ||||
| 03 | Right side member | 1 | 08/1968 | 02/1977 | 41111831742 | ENDED | Shop at ECS Tuning | |||
| 04 | Cross member | 1 | 41111825592 | ENDED | Shop at ECS Tuning | |||||
| 05 | Supporting plate | 1 | 41121809800 | ENDED | Shop at ECS Tuning | |||||
| 06 | Supporting plate | 1 | 41121809801 | ENDED | Shop at ECS Tuning | |||||
| 06 | Supporting plate | 1 | 41121809802 | ENDED | Shop at ECS Tuning | |||||
| 07 | Trunk floor | 1 | 08/1968 | 09/1973 | 41121816050 | ENDED | Shop at ECS Tuning | |||
| 07 | Trunk floor | 1 | 08/1968 | 07/1976 | 41121840162 | ENDED | Shop at ECS Tuning | |||
| 08 | Holder | 1 | 41121847440 | $23.72 | ENDED | Shop at ECS Tuning | ||||
| 09 | Towing bracket | 1 | 41125672116 | $6.81 | ENDED | Shop at ECS Tuning | ||||
| 10 | Mounting plate | 1 | 41121815320 | $19.47 | Shop at ECS Tuning | |||||
| 11 | Bracket for spare wheel | 1 | 06/1976 | 41121909076 | $10.25 | ENDED | Shop at ECS Tuning | |||
| 14 | Reinforcement | 1 | 41121825591 | $68.08 | ENDED | Shop at ECS Tuning | ||||
| 15 | Support | 1 | 08/1968 | 09/1973 | 41121821423 | ENDED | Shop at ECS Tuning | |||
| 16 | Support | 1 | 08/1968 | 02/1977 | 41121821421 | ENDED | Shop at ECS Tuning | |||
| 16 | Support | 1 | 08/1968 | 02/1977 | 41121821422 | ENDED | Shop at ECS Tuning | |||
| 17 | Support | 1 | 08/1968 | 02/1977 | 41121821417 | ENDED | Shop at ECS Tuning | |||
| 17 | Support | 1 | 08/1968 | 02/1977 | 41121821418 | ENDED | Shop at ECS Tuning |
