Rear wheelhouse/floor parts for BMW 2500-3.3Li 3.0Si (1973)

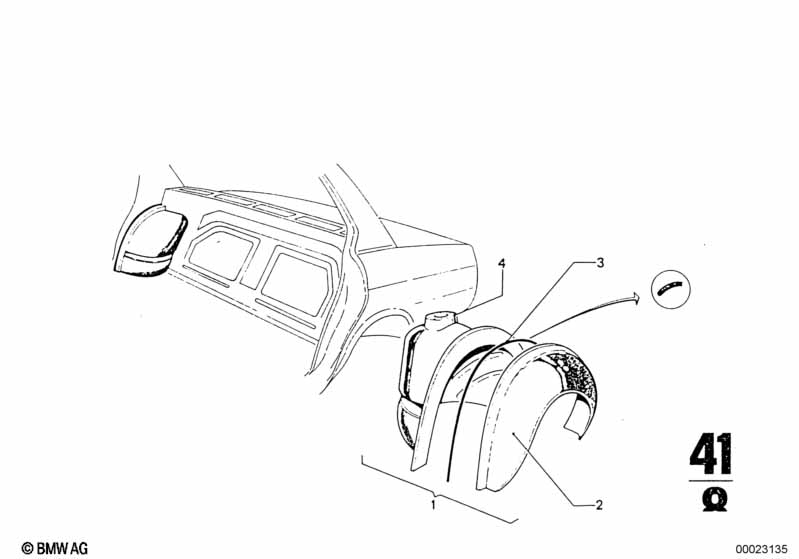

This Rear wheelhouse/floor parts technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.0Si. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1973.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Wheel arch | 1 | 41141802777 | ENDED | Shop at ECS Tuning | |||||
| 01 | Wheel arch | 1 | 41141802778 | ENDED | Shop at ECS Tuning | |||||
| 02 | Wheel arch outer rear left | 1 | 41141813729 | $97.09 | ENDED | Shop at ECS Tuning | ||||
| 02 | Wheel arch outer rear right | 1 | 41141813730 | $834.21 | ENDED | Shop at ECS Tuning | ||||
| 04 | Shock absorber mount rear | 2 | 41141807620 | $24.83 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
