Sealing cap/plug for BMW 2500-3.3Li 3.0Si (1973)

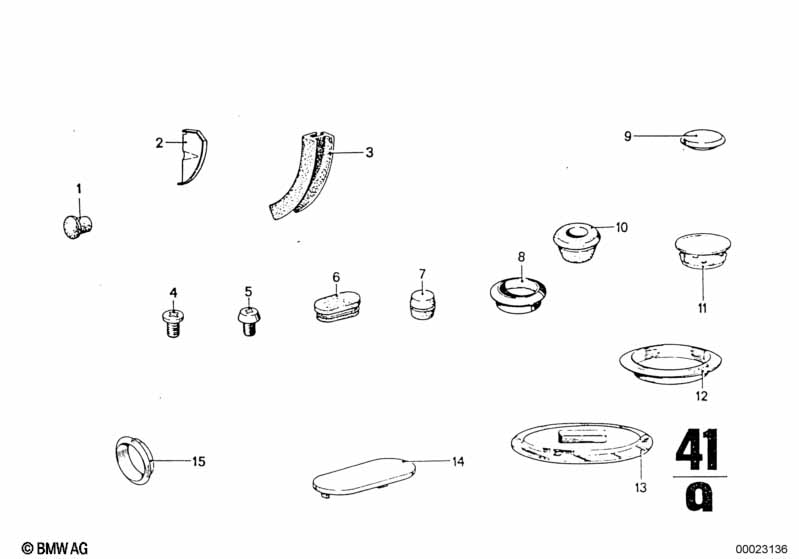

This Sealing cap/plug technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.0Si. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1973.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Pushrod seal | D=8MM | 1 | 41125503104 | $0.45 | ENDED | Shop at ECS Tuning | |||
| 02 | Covering plate | 1 | 51711820723 | $77.84 | ENDED | Shop at ECS Tuning | ||||
| 02 | Covering plate | 1 | 51711820724 | $97.63 | Shop at ECS Tuning | |||||
| 03 | Rubber seal | 2 | 08/1968 | 02/1977 | 51711815219 | $13.54 | Shop at ECS Tuning | |||
| 04 | Screw plug | 7/16" | 1 | 08/1968 | 02/1977 | 51711822900 | $0.46 | Shop at ECS Tuning | ||
| 05 | Screw plug | 7/16"X14 | 2 | 08/1968 | 02/1977 | 51711822930 | ENDED | Shop at ECS Tuning | ||
| 06 | Blind plug | 4 | 08/1968 | 02/1977 | 51711835752 | $8.17 | Shop at ECS Tuning | |||
| 07 | Blind plug | D=11MM | 2 | 08/1968 | 02/1977 | 41516442164 | $0.30 | Shop at ECS Tuning | ||
| 09 | Plug | 2 | 51711805350 | ENDED | Shop at ECS Tuning | |||||
| 10 | Blind plug | D=14MM | 1 | 08/1968 | 02/1977 | 51715690082 | ENDED | Shop at ECS Tuning | ||
| 11 | Blind plug | D=20MM | 16 | 51711801066 | $0.23 | Shop at ECS Tuning | ||||
| 12 | Paint plugs with hot-melt adhesive ring | D=35MM | 5 | 02/1977 | 41007140847 | $0.68 | ENDED | Shop at ECS Tuning | ||
| 12 | Paint plug | D=35MM | 5 | 51915A0C2C4 | Shop at ECS Tuning | |||||
| 13 | Cover lid | D=144MM | 5 | 41128200462 | $5.07 | ENDED | Shop at ECS Tuning | |||
| 14 | Cover lid | 4 | 51711800465 | ENDED | Shop at ECS Tuning | |||||
| 15 | Paint plugs with hot-melt adhesive ring | D=20MM | 1 | 41007140848 | $0.43 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
