Roof for BMW 2500-3.3Li 2800 (1971)

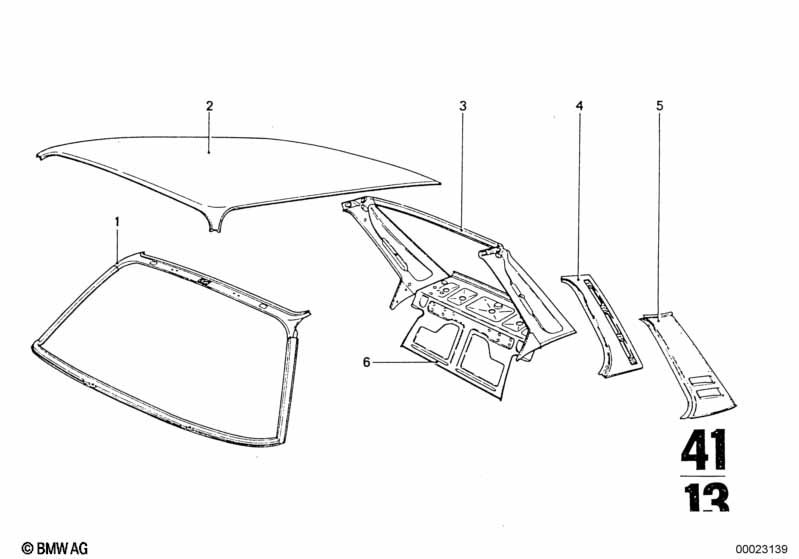

This Roof technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 2800. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Trim panel | 1 | 41321802761 | ENDED | Shop at ECS Tuning | |||||
| 02 | Roof cover | 1 | 08/1968 | 02/1977 | 41311802559 | ENDED | Shop at ECS Tuning | |||
| 02 | Roof covering sliding roof manual | 1 | 08/1968 | 02/1977 | 41311806591 | ENDED | Shop at ECS Tuning | |||
| 02 | Roof covering sliding roof manual | 1 | 08/1968 | 02/1977 | 41311807184 | $551.30 | ENDED | Shop at ECS Tuning | ||
| 03 | Rear window frame | 1 | 41321817086 | ENDED | Shop at ECS Tuning | |||||
| 04 | Connector | 1 | 05/1971 | 02/1977 | 41351813115 | ENDED | Shop at ECS Tuning | |||
| 04 | Connector | 1 | 05/1971 | 02/1977 | 41351813116 | ENDED | Shop at ECS Tuning | |||
| 06 | Partition trunk | 1 | 41131802534 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
