Front side panel for BMW 2500-3.3Li 3.0S (1977)

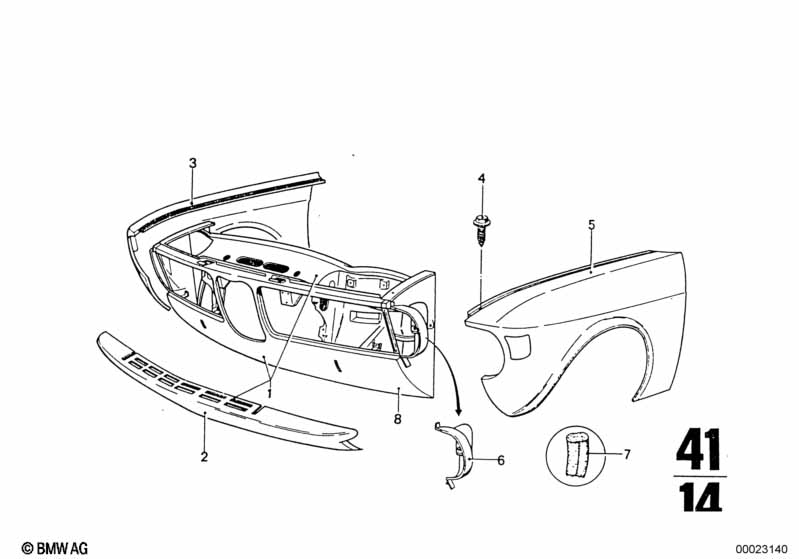

This Front side panel technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.0S. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1977.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 03 | Side panel, front right | 1 | 41351802792 | $483.80 | ENDED | Shop at ECS Tuning | ||||
| 04 | Sheet metal screw | B6,5X16 | 28 | 12138530118 | $0.40 | ENDED | Shop at ECS Tuning | |||
| 05 | Side panel, front left | 1 | 41351802791 | $483.80 | Shop at ECS Tuning | |||||
| 06 | Covering plate left | 1 | 41331823089 | $142.85 | ENDED | Shop at ECS Tuning | ||||
| 06 | Covering plate right | 1 | 41331823090 | $228.61 | Shop at ECS Tuning | |||||
| 07 | Filling rubber | X | 41351816059 | ENDED | Shop at ECS Tuning | |||||
| 07 | Filling rubber | 5000MM | X | 41359058743 | $42.15 | ENDED | Shop at ECS Tuning | |||
| 08 | Front panel | 1 | 41331852976 | $624.96 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2500-3.3Li 3.0S Front side panel?
- This technical diagram illustrates the Front side panel within the Bodywork group for the 2500-3.3Li 3.0S produced during 1977. It provides a detailed exploded view of the components, identifying key parts such as the Side panel, front right (Part #41351802792).
- Which models use the hardware listed in this Front side panel?
- The hardware and components featured in the Front side panel are specific to the 2500-3.3Li 3.0S produced during 1977. These technical specifications ensure that parts like the Side panel, front right (41351802792) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Front side panel assembly?
- Each item in the Front side panel corresponds to the numbered list below the illustration. For the 2500-3.3Li 3.0S, you can identify the Side panel, front right by locating its position on the schematic, which then links to the official BMW part number 41351802792 for the Bodywork section.
