Rear side panel for BMW 2500-3.3Li 2500 (1971)

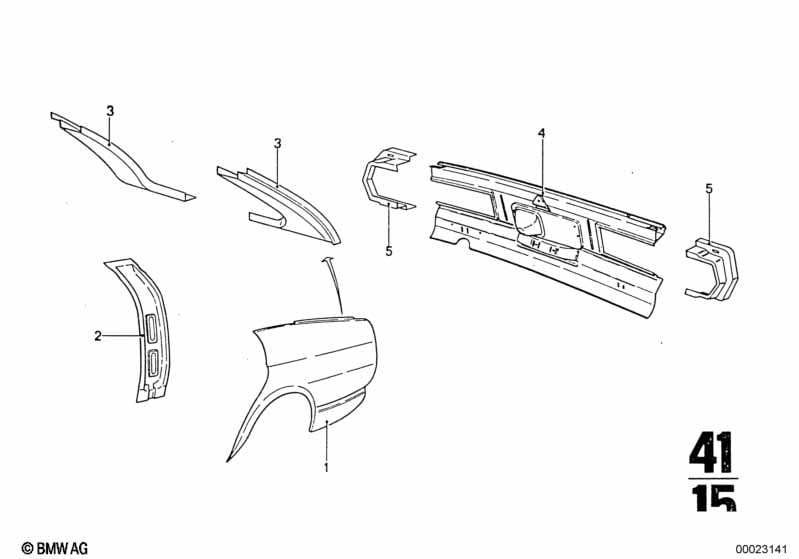

This Rear side panel technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 2500. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Left rear side panel | 1 | 08/1968 | 02/1977 | 41351815607 | ENDED | Shop at ECS Tuning | |||
| 01 | Right rear side panel | 1 | 08/1968 | 02/1977 | 41351815608 | $583.11 | ENDED | Shop at ECS Tuning | ||
| 02 | Support | 2 | 41351813984 | ENDED | Shop at ECS Tuning | |||||
| 03 | Connection piece left | 1 | 41351807179 | ENDED | Shop at ECS Tuning | |||||
| 03 | Connection piece right | 1 | 41351807180 | ENDED | Shop at ECS Tuning | |||||
| 04 | Tail panel | 1 | 05/1971 | 02/1977 | 41341813496 | $247.75 | ENDED | Shop at ECS Tuning | ||
| 05 | End piece | 1 | 41351800563 | ENDED | Shop at ECS Tuning | |||||
| 05 | End piece | 1 | 41351800564 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
