Front doors for BMW 2500-3.3Li 3.0Si (1977)

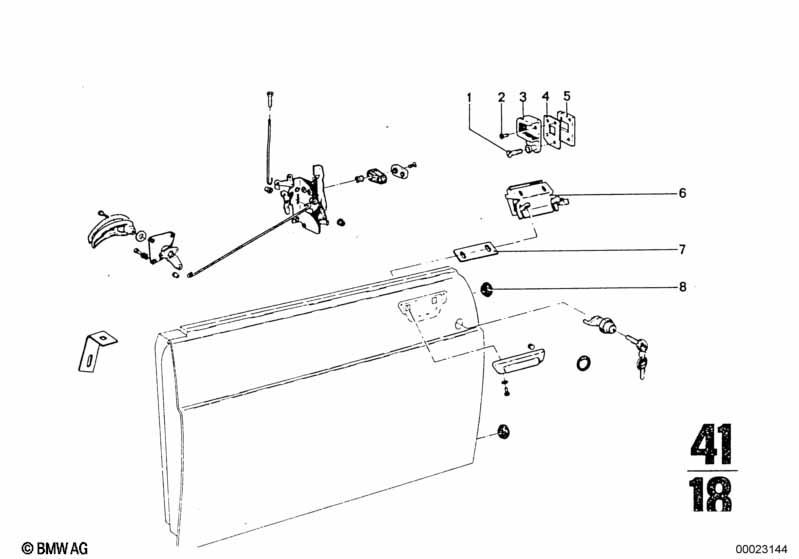

This Front doors technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.0Si. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1977.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Countersunk head screw | M8X35 | 2 | 07119928180 | $1.63 | Shop at ECS Tuning | ||||
| 02 | Countersunk head screw | M6X16-8.8-ZNS3 | 6 | 07119904304 | $0.25 | Shop at ECS Tuning | ||||
| 04 | Spacer | 2 | 51211806023 | $1.17 | ENDED | Shop at ECS Tuning | ||||
| 05 | Locker plate left | 1 | 51211851493 | $4.06 | Shop at ECS Tuning | |||||
| 05 | Locker plate right | 1 | 51211851494 | $4.06 | Shop at ECS Tuning | |||||
| 06 | Base door handle left | 1 | 51211808403 | ENDED | Shop at ECS Tuning | |||||
| 06 | Base door handle right | 1 | 51211808404 | $34.48 | ENDED | Shop at ECS Tuning | ||||
| 07 | Lock plate | 2 | 51211832811 | $6.31 | Shop at ECS Tuning | |||||
| 08 | Plug | 2 | 51211800363 | $0.55 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
