Door weatherstrip front for BMW 2500-3.3Li 2800 (1971)

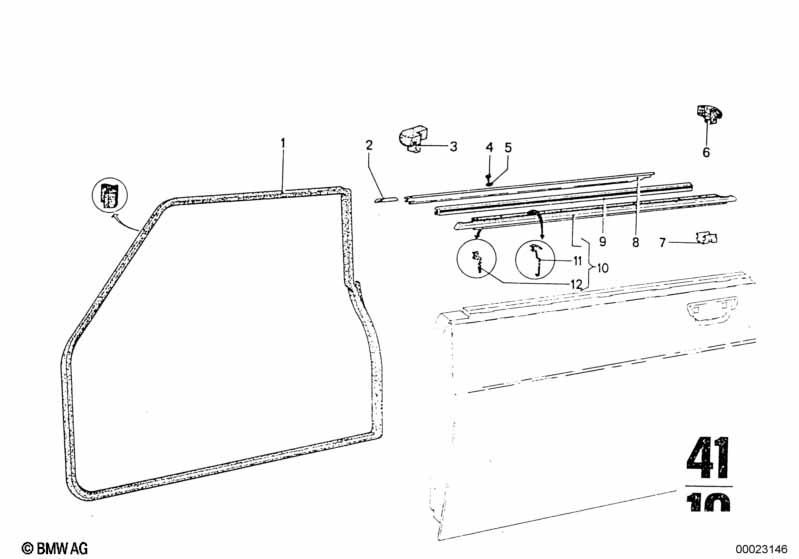

This Door weatherstrip front technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 2800. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Front left door seal | 1 | 51211847033 | $318.00 | Shop at ECS Tuning | |||||
| 01 | Front right door seal | 1 | 51211847034 | $318.00 | Shop at ECS Tuning | |||||
| 02 | Cup | 1 | 51211820179 | ENDED | Shop at ECS Tuning | |||||
| 02 | Cup | 1 | 51211820180 | ENDED | Shop at ECS Tuning | |||||
| 03 | Covering cap | 1 | 51211801695 | ENDED | Shop at ECS Tuning | |||||
| 03 | Covering cap | 1 | 51211801696 | $3.29 | ENDED | Shop at ECS Tuning | ||||
| 04 | Washer | 4-200 HV-ZNS3 | 8 | 07119904207 | Shop at ECS Tuning | |||||
| 05 | Set fillister head self-tapping screw 20 | ST4,2X13-Z2 | 8 | 07509064386 | ENDED | Shop at ECS Tuning | ||||
| 06 | Covering cap | 1 | 51211801679 | ENDED | Shop at ECS Tuning | |||||
| 06 | Covering cap | 1 | 51211801680 | ENDED | Shop at ECS Tuning | |||||
| 07 | Clamp | 10 | 51211801270 | $1.07 | ENDED | Shop at ECS Tuning | ||||
| 08 | Moulding, front left | 1 | 51211813019 | $25.95 | ENDED | Shop at ECS Tuning | ||||
| 08 | Moulding, front right | 1 | 51211813020 | ENDED | Shop at ECS Tuning | |||||
| Can be used for part number 1847051, but must be shortened by 20mm |
||||||||||
| 09 | Door weatherstrip inner | 2 | 51211864672 | $11.69 | Shop at ECS Tuning | |||||
| 10 | Door weather strip outer left | 1 | 51211800269 | ENDED | Shop at ECS Tuning | |||||
| 10 | Door weather strip outer right | 1 | 51211800270 | $234.36 | ENDED | Shop at ECS Tuning | ||||
| 11 | Sealing lip type | 2 | 51211854297 | ENDED | Shop at ECS Tuning | |||||
| 12 | Brush | 2 | 51211854298 | ENDED | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
