Rear door - hinge/door brake for BMW 2500-3.3Li 2500 (1971)
This Rear door - hinge/door brake technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 2500. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Door rear left | 1 | 08/1968 | 02/1977 | 41521801461 | $652.86 | ENDED | Shop at ECS Tuning | ||
| -> Fg 3104789 / 3.0 S Bav. -> Fg 3133373 / 3.0 S Bav. A |
||||||||||
| 01 | Door rear right | 1 | 08/1968 | 02/1977 | 41521801462 | $652.86 | ENDED | Shop at ECS Tuning | ||
| -> Fg 3104789 / 3.0 S Bav. -> Fg 3133373 / 3.0 S Bav. A |
||||||||||
| 02 | Hinge spacer | 2,00MM | 2 | 41511801252 | ENDED | Shop at ECS Tuning | ||||
| 02 | Hinge spacer | 1,00MM | 2 | 41511801253 | $10.32 | Shop at ECS Tuning | ||||
| 02 | Hinge spacer | 0,75MM | 2 | 41511801254 | $7.49 | ENDED | Shop at ECS Tuning | |||
| 03 | Hinge | 1 | 41521802499 | $44.92 | ENDED | Shop at ECS Tuning | ||||
| 03 | Hinge | 1 | 41521802500 | ENDED | Shop at ECS Tuning | |||||
| 04 | Stop buffer | 2 | 41521805535 | ENDED | Shop at ECS Tuning | |||||
| 05 | Hex bolt | M6X18 | 4 | 23317545769 | $0.67 | Shop at ECS Tuning | ||||
| 06 | Wave washer | B6 | 4 | 07119932072 | $0.09 | ENDED | Shop at ECS Tuning | |||
| 07 | Washer | A6,4-200HV-ZNS3 | 4 | 07119903791 | $0.11 | Shop at ECS Tuning | ||||
| 08 | Door brake | 2 | 41521800554 | $50.26 | ENDED | Shop at ECS Tuning | ||||
| 09 | Gasket | 4 | 51211807212 | $2.73 | Shop at ECS Tuning | |||||
| 10 | Hinge | 1 | 41521802497 | ENDED | Shop at ECS Tuning | |||||
| 10 | Hinge | 1 | 41521802498 | ENDED | Shop at ECS Tuning | |||||
| 11 | Hex bolt | M8X20-ZNNIV SI | 12 | 07119903039 | Shop at ECS Tuning | |||||
| 12 | Spring washer | B8 | 12 | 07119933096 | $0.18 | Shop at ECS Tuning | ||||
| 13 | Washer | A8,4X25 | 12 | 07147201571 | $0.20 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2500-3.3Li 2500 Rear door - hinge/door brake?

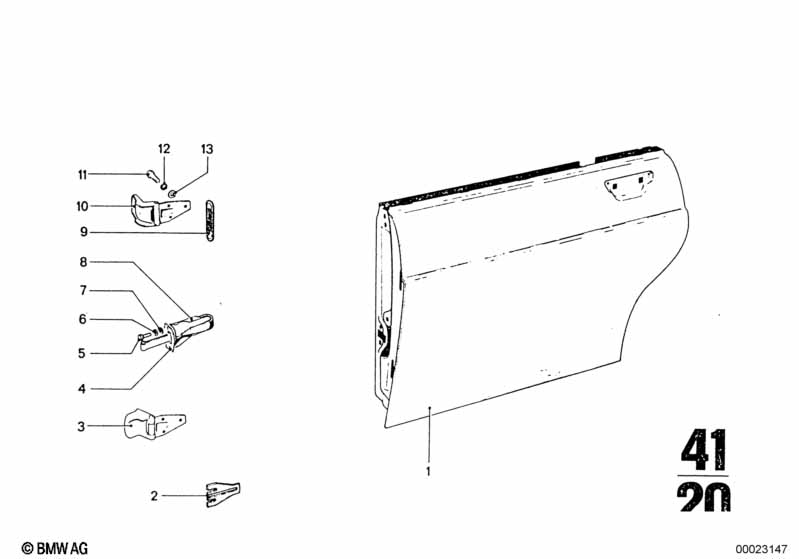

- This technical diagram illustrates the Rear door - hinge/door brake within the Bodywork group for the 2500-3.3Li 2500 produced during 1971. It provides a detailed exploded view of the components, identifying key parts such as the Door rear left (Part #41521801461).
- Which models use the hardware listed in this Rear door - hinge/door brake?
- The hardware and components featured in the Rear door - hinge/door brake are specific to the 2500-3.3Li 2500 produced during 1971. These technical specifications ensure that parts like the Door rear left (41521801461) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Rear door - hinge/door brake assembly?
- Each item in the Rear door - hinge/door brake corresponds to the numbered list below the illustration. For the 2500-3.3Li 2500, you can identify the Door rear left by locating its position on the schematic, which then links to the official BMW part number 41521801461 for the Bodywork section.
