Closing system, door, rear for BMW 2500-3.3Li 2500 (1971)

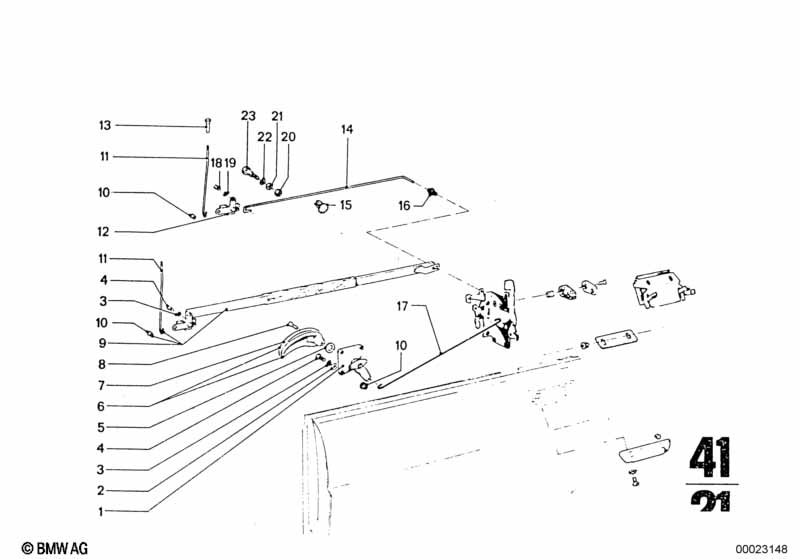

This Closing system, door, rear technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 2500. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Remote control left | 1 | 51211800665 | $9.77 | Shop at ECS Tuning | |||||
| 01 | Remote control right | 1 | 51211800666 | $9.77 | Shop at ECS Tuning | |||||
| 02 | Washer | 5.3-140 HV-ZNS | 6 | 07119936439 | $0.40 | Shop at ECS Tuning | ||||
| 03 | Tooth washer | A5,1 | 10 | 08/1968 | 02/1977 | 07119936107 | $0.18 | Shop at ECS Tuning | ||
| 04 | Hex bolt | M5X8 | 10 | 08/1968 | 02/1977 | 07119913212 | $0.25 | Shop at ECS Tuning | ||
| 05 | Cover | 2 | 51211800789 | $0.55 | Shop at ECS Tuning | |||||
| 06 | Handle left | 1 | 51211806003 | $38.11 | Shop at ECS Tuning | |||||
| 06 | Handle right | 1 | 51211806004 | $38.11 | Shop at ECS Tuning | |||||
| 07 | Covering left | 1 | 51211803751 | $4.61 | Shop at ECS Tuning | |||||
| 07 | Covering right | 1 | 51211803752 | $4.61 | Shop at ECS Tuning | |||||
| 08 | Conical screw | 2 | 51211800790 | $0.67 | Shop at ECS Tuning | |||||
| 09 | Connection rod | 1 | 08/1968 | 02/1977 | 51221800499 | ENDED | Shop at ECS Tuning | |||
| 09 | Connection rod | 1 | 08/1968 | 02/1977 | 51221800500 | ENDED | Shop at ECS Tuning | |||
| 10 | Grommet | 8 | 52208238999 | $0.40 | Shop at ECS Tuning | |||||
| 11 | Operating rod | 2 | 51221800503 | ENDED | Shop at ECS Tuning | |||||
| 12 | Supporting bracket | 1 | 05/1971 | 02/1977 | 51221821237 | ENDED | Shop at ECS Tuning | |||
| 12 | Supporting bracket | 1 | 05/1971 | 02/1977 | 51221821238 | ENDED | Shop at ECS Tuning | |||
| 13 | Button | 2 | 51216654120 | $2.40 | ENDED | Shop at ECS Tuning | ||||
| 14 | Connection rod | 2 | 05/1971 | 02/1977 | 51221817031 | ENDED | Shop at ECS Tuning | |||
| 15 | Clamp | 6 | 08/1968 | 02/1977 | 51211821224 | $0.42 | Shop at ECS Tuning | |||
| 16 | Circlip | 2 | 05/1971 | 02/1977 | 51221817032 | $0.31 | Shop at ECS Tuning | |||
| 17 | Connection rod | 2 | 05/1971 | 02/1977 | 51221817029 | $3.63 | ENDED | Shop at ECS Tuning | ||
| 18 | Hex bolt | M5X8 | 10 | 08/1968 | 02/1977 | 07119913212 | $0.25 | Shop at ECS Tuning | ||
| 19 | Tooth washer | A5,1 | 10 | 08/1968 | 02/1977 | 07119936107 | $0.18 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
