Rear door control/door lock for BMW 2500-3.3Li 2500 (1977)

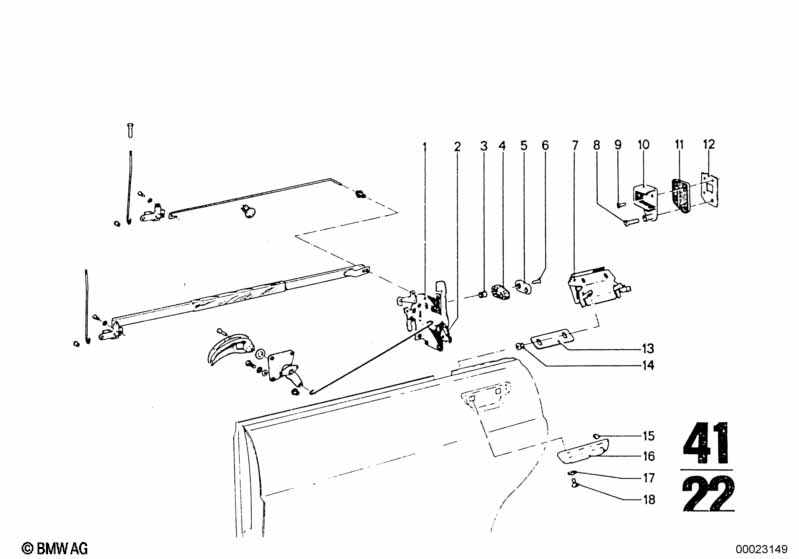

This Rear door control/door lock technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 2500. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1977.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Catch rear left | 1 | 51221846033 | $80.59 | Shop at ECS Tuning | |||||
| 01 | Catch rear right | 1 | 51221846034 | $80.59 | Shop at ECS Tuning | |||||
| 02 | Spring | 2 | 51211807217 | ENDED | Shop at ECS Tuning | |||||
| 03 | Bush | 2 | 51211823488 | $1.38 | Shop at ECS Tuning | |||||
| 04 | Bump stop | 2 | 51211823487 | $6.36 | Shop at ECS Tuning | |||||
| 05 | Plate | 2 | 51211874709 | $11.68 | ENDED | Shop at ECS Tuning | ||||
| 06 | Countersunk head screw | M6X12 | 6 | 07119928511 | $0.07 | Shop at ECS Tuning | ||||
| 07 | Base plate | 1 | 51221808405 | ENDED | Shop at ECS Tuning | |||||
| 07 | Base plate | 1 | 51221808406 | ENDED | Shop at ECS Tuning | |||||
| 08 | Set countersunk head screw 25 | M8X35 | 2 | 07509063233 | ENDED | Shop at ECS Tuning | ||||
| 09 | Countersunk head screw | M6X16-8.8-ZNS3 | 6 | 07119904304 | $0.25 | Shop at ECS Tuning | ||||
| 11 | Spacer | X | 51211806023 | $1.17 | ENDED | Shop at ECS Tuning | ||||
| 12 | Locker plate right | 2 | 51211851494 | $4.06 | Shop at ECS Tuning | |||||
| 13 | Lock plate | 2 | 51211832811 | $6.31 | Shop at ECS Tuning | |||||
| 14 | Self-locking hex nut | M6 | 4 | 07147153450 | $0.47 | Shop at ECS Tuning | ||||
| 15 | Distance rubber | D=6MM | 4 | 51216742120 | $1.25 | Shop at ECS Tuning | ||||
| 16 | Handle | 2 | 51211808440 | $72.39 | Shop at ECS Tuning | |||||
| 17 | Tooth washer | A4,3 | 4 | 07119936037 | $0.36 | Shop at ECS Tuning | ||||
| 18 | Fillister head screw | M4X10-4.8-H | 4 | 07119907616 | $1.07 | Shop at ECS Tuning |
