Door weatherstrip rear for BMW 2500-3.3Li 2500 (1971)

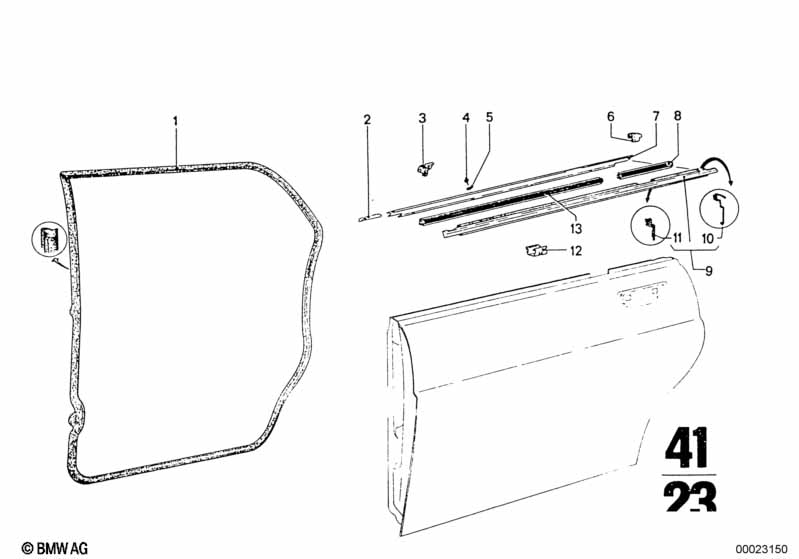

This Door weatherstrip rear technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 2500. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Left rear door seal | 1 | 08/1968 | 02/1977 | 51221800077 | $310.64 | Shop at ECS Tuning | |||
| 01 | Right rear door seal | 1 | 08/1968 | 02/1977 | 51221800078 | $310.64 | Shop at ECS Tuning | |||
| 02 | Cup | 1 | 51211820179 | ENDED | Shop at ECS Tuning | |||||
| 02 | Cup | 1 | 51211820180 | ENDED | Shop at ECS Tuning | |||||
| 03 | Covering cap | 1 | 51221801659 | $2.96 | ENDED | Shop at ECS Tuning | ||||
| 04 | Set fillister head self-tapping screw 20 | ST4,8X19 | 8 | 07509064398 | ENDED | Shop at ECS Tuning | ||||
| 05 | Washer | 4-200 HV-ZNS3 | 8 | 07119904207 | Shop at ECS Tuning | |||||
| 06 | Covering cap | 1 | 51221800625 | ENDED | Shop at ECS Tuning | |||||
| 06 | Covering cap | 1 | 51221800626 | ENDED | Shop at ECS Tuning | |||||
| 07 | Waist rail trim strip, left rear | 1 | 08/1968 | 02/1977 | 51221813021 | ENDED | Shop at ECS Tuning | |||
| 07 | Waist rail trim strip, right rear | 1 | 08/1968 | 02/1977 | 51221813022 | $28.74 | ENDED | Shop at ECS Tuning | ||
| 08 | Window weather strip | 2 | 51221847038 | ENDED | Shop at ECS Tuning | |||||
| 09 | Window shaft seal, outside, left rear | 1 | 51221800271 | $260.03 | ENDED | Shop at ECS Tuning | ||||
| 09 | Window shaft seal, outside, right rear | 1 | 51221800272 | ENDED | Shop at ECS Tuning | |||||
| 10 | Sealing lip type | 2 | 51211854297 | ENDED | Shop at ECS Tuning | |||||
| 11 | Brush | 2 | 51211854298 | ENDED | Shop at ECS Tuning | |||||
| 12 | Clamp | 10 | 51211801270 | $1.07 | ENDED | Shop at ECS Tuning | ||||
| 13 | sealing | 2 | 08/1968 | 02/1977 | 51221847037 | $33.47 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
