Hood for BMW 2500-3.3Li 3.0Si (1973)

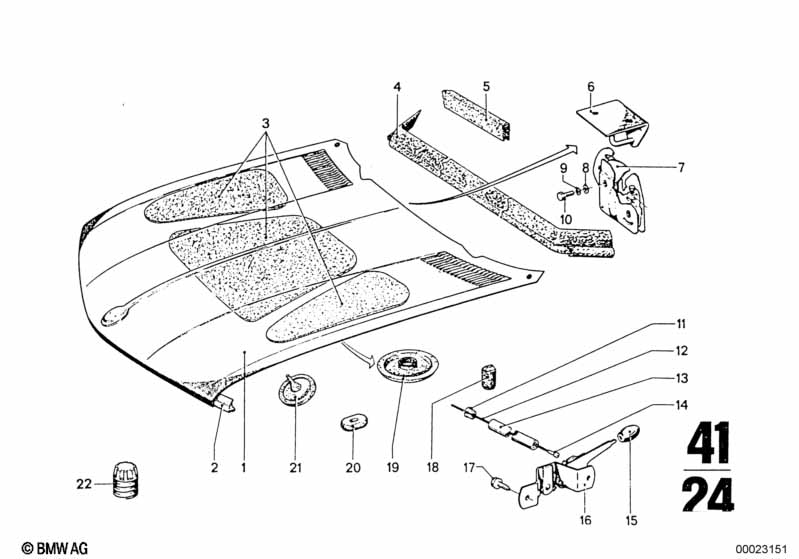

This Hood technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.0Si. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1973.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Hood | 1 | 41611813177 | $1255.50 | ENDED | Shop at ECS Tuning | ||||
| 02 | sealing | 1 | 51231800676 | $15.18 | Shop at ECS Tuning | |||||
| 03 | Sound absorber | 1 | 51481806707 | $101.30 | Shop at ECS Tuning | |||||
| 04 | sealing | 1 | 51231808736 | $48.88 | ENDED | Shop at ECS Tuning | ||||
| 05 | sealing | 1 | 51231808736 | $48.88 | ENDED | Shop at ECS Tuning | ||||
| 06 | Catch bracket | 2 | 41611817568 | $8.93 | Shop at ECS Tuning | |||||
| 07 | Lock | 2 | 51231859731 | $111.74 | ENDED | Shop at ECS Tuning | ||||
| 08 | Washer | 6-200 HV-ZNS3 | 4 | 07119904606 | $0.84 | Shop at ECS Tuning | ||||
| 09 | Spring washer | B6 | 4 | 07119933082 | $0.09 | Shop at ECS Tuning | ||||
| 10 | Hex bolt | M6X16-8.8-ZNS3 | 4 | 07119904357 | $0.36 | Shop at ECS Tuning | ||||
| 11 | Bush | 1 | 51237630108 | $13.47 | Shop at ECS Tuning | |||||
| 12 | Bowden cable | 1 | 51231800579 | $11.79 | Shop at ECS Tuning | |||||
| 13 | Guide tube | 1 | 51231805051 | ENDED | Shop at ECS Tuning | |||||
| 14 | NIpple | 1 | 07119988505 | $1.73 | Shop at ECS Tuning | |||||
| 15 | Button | 1 | 41335680162 | $14.81 | Shop at ECS Tuning | |||||
| 16 | Lever | 1 | 08/1968 | 02/1977 | 51231807189 | $22.03 | ENDED | Shop at ECS Tuning | ||
| 18 | Stop buffer | 2 | 61611359866 | $5.47 | Shop at ECS Tuning | |||||
| 19 | Plug | 2 | 51711805350 | ENDED | Shop at ECS Tuning | |||||
| 20 | Bump stop | 2 | 51231802818 | ENDED | Shop at ECS Tuning | |||||
| 21 | Bump stop | 2 | 51231805735 | ENDED | Shop at ECS Tuning | |||||
| 22 | Stop buffer | 2 | 51231852347 | $2.79 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2500-3.3Li 3.0Si Hood?
- This technical diagram illustrates the Hood within the Bodywork group for the 2500-3.3Li 3.0Si produced during 1973. It provides a detailed exploded view of the components, identifying key parts such as the Hood (Part #41611813177).
- Which models use the hardware listed in this Hood?
- The hardware and components featured in the Hood are specific to the 2500-3.3Li 3.0Si produced during 1973. These technical specifications ensure that parts like the Hood (41611813177) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Hood assembly?
- Each item in the Hood corresponds to the numbered list below the illustration. For the 2500-3.3Li 3.0Si, you can identify the Hood by locating its position on the schematic, which then links to the official BMW part number 41611813177 for the Bodywork section.
