Engine hood/torsion spring/sealing for BMW 2500-3.3Li 2800 (1975)

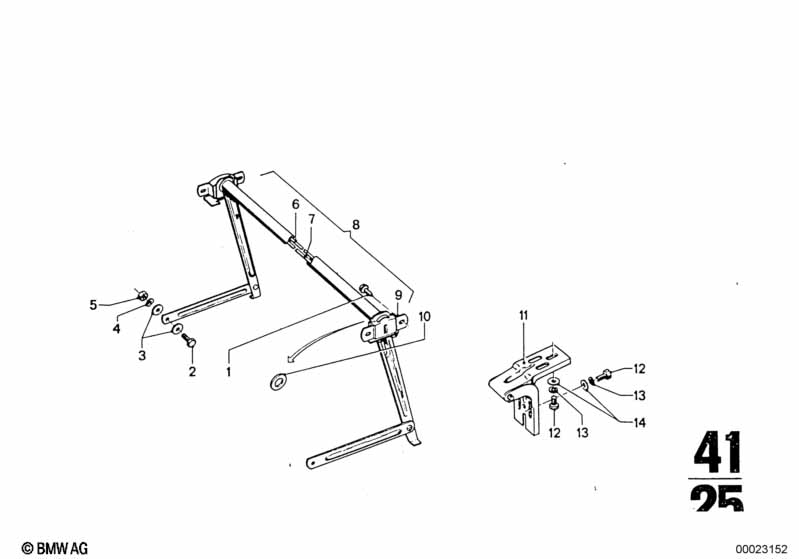

This Engine hood/torsion spring/sealing technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 2800. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1975.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Sheet metal screw | B6,5X16 | 4 | 12138530118 | $0.40 | ENDED | Shop at ECS Tuning | |||
| 02 | Hex bolt | 2 | 51235780131 | $6.90 | Shop at ECS Tuning | |||||
| 03 | Washer | 8,4X24X2-ZNS3 | 4 | 07119904164 | $0.40 | Shop at ECS Tuning | ||||
| 05 | Hex nut | M8-8-ZNS3 | 2 | 02/1977 | 07119904032 | $0.16 | Shop at ECS Tuning | |||
| 05 | Hex nut | M8-8-ZNNIV SI | 2 | 07119905515 | $0.16 | Shop at ECS Tuning | ||||
| 06 | Stütze mit Drehstäbe | 1 | 41611804494 | ENDED | Shop at ECS Tuning | |||||
| 07 | Stütze mit Drehstäbe | 1 | 41611804494 | ENDED | Shop at ECS Tuning | |||||
| 08 | Stütze mit Drehstäbe | 1 | 41611804494 | ENDED | Shop at ECS Tuning | |||||
| 09 | Holder | 2 | 41611802203 | $7.28 | Shop at ECS Tuning | |||||
| 10 | Spacer | 2 | 41615480125 | ENDED | Shop at ECS Tuning | |||||
| 11 | Hinge | 2 | 41611800342 | $44.91 | ENDED | Shop at ECS Tuning | ||||
| 12 | Hex bolt | M8X20-ZNNIV SI | 12 | 07119903039 | Shop at ECS Tuning | |||||
| 13 | Spring washer | B8 | 12 | 07119933096 | $0.18 | Shop at ECS Tuning | ||||
| 14 | Washer | 8,4X16X1,6-ZNNV | 12 | 07119907030 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2500-3.3Li 2800 Engine hood/torsion spring/sealing?
- This technical diagram illustrates the Engine hood/torsion spring/sealing within the Bodywork group for the 2500-3.3Li 2800 produced during 1975. It provides a detailed exploded view of the components, identifying key parts such as the Sheet metal screw (Part #12138530118).
- Which models use the hardware listed in this Engine hood/torsion spring/sealing?
- The hardware and components featured in the Engine hood/torsion spring/sealing are specific to the 2500-3.3Li 2800 produced during 1975. These technical specifications ensure that parts like the Sheet metal screw (12138530118) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Engine hood/torsion spring/sealing assembly?
- Each item in the Engine hood/torsion spring/sealing corresponds to the numbered list below the illustration. For the 2500-3.3Li 2800, you can identify the Sheet metal screw by locating its position on the schematic, which then links to the official BMW part number 12138530118 for the Bodywork section.
