Single components for body-side frame for BMW 3 Series E46 330xi (2001)

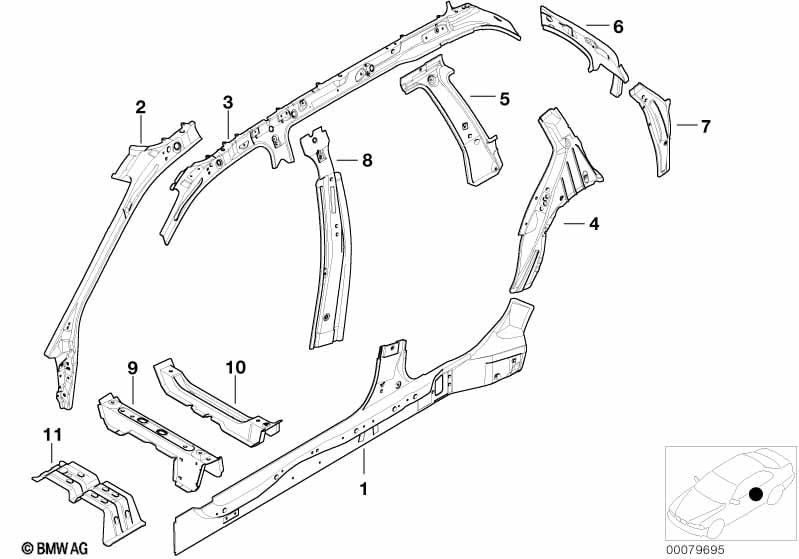

This Single components for body-side frame technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 330xi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Left side member | 1 | 41127039693 | $112.49 | Shop at ECS Tuning | |||||
| 01 | Right side member | 1 | 41127039694 | $112.49 | Shop at ECS Tuning | |||||
| 02 | Left front side frame | 1 | 41218253751 | $163.14 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Flange nut | M10 | 2 | 41218227672 | $1.96 | Shop at ECS Tuning | ||||
| 02 | Right front side frame | 1 | 41218253752 | $170.86 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Flange nut | M10 | 1 | 41218227672 | $1.96 | Shop at ECS Tuning | ||||
| 03 | Left interior roof frame | 1 | 41218254203 | $163.21 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| 03 | Right interior roof frame | 1 | 41218254204 | $165.17 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Flange nut | M10 | 1 | 41218227672 | $1.96 | Shop at ECS Tuning | ||||
| 04 | Reinforcement left | 1 | 41218242349 | $114.23 | ENDED | Shop at ECS Tuning | ||||
| 04 | Reinforcement right | 1 | 41218242350 | $114.23 | ENDED | Shop at ECS Tuning | ||||
| 05 | Left interior column C | 1 | 41218242351 | $61.27 | ENDED | Shop at ECS Tuning | ||||
| 05 | Right interior column C | 1 | 41218242352 | $61.27 | ENDED | Shop at ECS Tuning | ||||
| 06 | Left interior column D | 1 | 41218242353 | $61.85 | ENDED | Shop at ECS Tuning | ||||
| additionally required parts: MOULDED PART |
||||||||||
| 06 | Right interior column D | 1 | 41218242354 | $61.85 | ENDED | Shop at ECS Tuning | ||||
| additionally required parts: MOULDED PART |
||||||||||
| 07 | reinforcement D-pillar inside left | 1 | 41218253687 | $55.28 | Shop at ECS Tuning | |||||
| 07 | reinforcement D-pillar inside right | 1 | 41218253688 | $55.28 | ENDED | Shop at ECS Tuning | ||||
| 08 | Interior left column B | 1 | 41218253749 | $139.58 | Shop at ECS Tuning | |||||
| 08 | Column B inside right | 1 | 41218253750 | $139.58 | Shop at ECS Tuning | |||||
| 09 | Right front seat console | 1 | 41118239494 | $43.41 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with 4-wheel drive |
S203A=Yes |
|||||||||
| 09 | Left front seat console | 1 | 41117037741 | $76.19 | ENDED | Shop at ECS Tuning | ||||
| 10 | Left rear seat console | 1 | 41118233493 | $43.41 | ENDED | Shop at ECS Tuning | ||||
| 10 | Right rear seat console | 1 | 41118233494 | $43.41 | ENDED | Shop at ECS Tuning | ||||
| 11 | Covering plate right | 1 | 41117037746 | $17.35 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with 4-wheel drive |
S203A=Yes |
|||||||||
| 11 | Covering plate left | 1 | 41117037743 | $17.78 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
