Side panel/tail trim for BMW 3 Series E46 320d (2005)

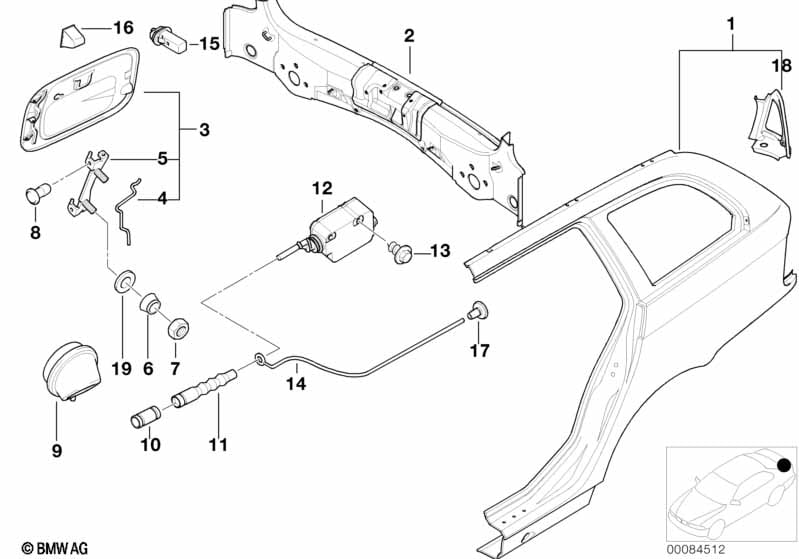

This Side panel/tail trim technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 320d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2005.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Left rear side panel | 1 | 41218242347 | $431.06 | Shop at ECS Tuning | |||||
| additionally required parts: MOULDED PART |
||||||||||
| 01 | Side panel | 1 | 41218242348 | $431.06 | Shop at ECS Tuning | |||||
| additionally required parts: MOULDED PART |
||||||||||
| 02 | Complete tail trim | 1 | 41348242359 | $210.38 | Shop at ECS Tuning | |||||
| 03 | Fill-in flap | 1 | 51178208246 | $37.48 | Shop at ECS Tuning | |||||
| 04 | Spring | 1 | 51171888374 | $0.38 | Shop at ECS Tuning | |||||
| 05 | Hinge | 1 | 51178151955 | $1.93 | Shop at ECS Tuning | |||||
| 06 | Spacer sleeve | 2 | 51171888394 | $1.82 | Shop at ECS Tuning | |||||
| 07 | Hex nut | M6-8-ZNFE | 2 | 07119901721 | $0.13 | Shop at ECS Tuning | ||||
| 08 | Stop buffer | 1,5 MM | 2 | 51171911306 | $0.32 | Shop at ECS Tuning | ||||
| 08 | Stop buffer | 1 MM | 2 | 51178156239 | $0.32 | Shop at ECS Tuning | ||||
| 09 | Tank filler pot | 1 | 51718208646 | $14.42 | Shop at ECS Tuning | |||||
| 10 | Sleeve | 1 | 51258151536 | $0.53 | Shop at ECS Tuning | |||||
| 11 | Rubber boot | 1 | 51258151799 | $3.77 | Shop at ECS Tuning | |||||
| 12 | Filler flap actuator | 1 | 03/2003 | 67116987637 | $57.47 | Shop at ECS Tuning | ||||
| 13 | Torx-bolt for plastic material | ISA TS5X16 | 2 | 07149113701 | $0.38 | Shop at ECS Tuning | ||||
| 14 | Pulling strip f emergency mechanism | 1 | 51258234140 | $1.23 | Shop at ECS Tuning | |||||
| 15 | Buffer stop with ejector | 1 | 51178228939 | $7.63 | Shop at ECS Tuning | |||||
| 16 | Cap | 1 | 51171928699 | $0.62 | Shop at ECS Tuning | |||||
| 17 | Emergency mechanism | 1 | 51258234143 | $0.93 | Shop at ECS Tuning | |||||
| 18 | Rear lights cup, left | 1 | 41217022411 | $60.83 | Shop at ECS Tuning | |||||
| 18 | Rear lights cup, right | 1 | 41217022412 | $60.83 | Shop at ECS Tuning | |||||
| 19 | Compensating plate | 8X14X0,5 | 2 | 07119903258 | $0.78 | Shop at ECS Tuning | ||||
