Cavity shielding, side frame for BMW 3 Series E46 320d (2001)

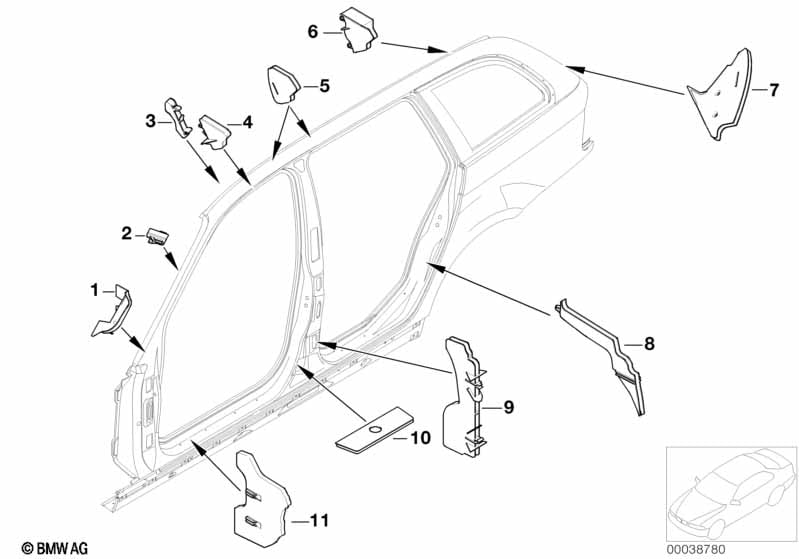

This Cavity shielding, side frame technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 320d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| FOR VEHICLES WITH AND WITHOUT SLIDING LIFTING ROOF |
||||||||||
| 01 | Molded part column A left | 1 | 41218222435 | $6.37 | Shop at ECS Tuning | |||||
| 01 | Molded part column A right | 1 | 41218222436 | $6.37 | ENDED | Shop at ECS Tuning | ||||
| 02 | Molded part windshield panel lateral | 1 | 41218208271 | $6.70 | Shop at ECS Tuning | |||||
| 03 | Molded part f roof frame interior front | 1 | 41218216586 | ENDED | Shop at ECS Tuning | |||||
| 04 | Molded part f roof frame exterior front | 1 | 41218202920 | ENDED | Shop at ECS Tuning | |||||
| 05 | Molded part f roof frame center | 2 | 41218202923 | $7.54 | Shop at ECS Tuning | |||||
| 06 | Molded part column C | 1 | 41218215545 | $3.29 | Shop at ECS Tuning | |||||
| 07 | Molded part column D | 1 | 41218233517 | $9.63 | Shop at ECS Tuning | |||||
| 08 | Molded part f entrance rear | 1 | 41218215546 | $8.02 | Shop at ECS Tuning | |||||
| 09 | Molded part f entrance center | 1 | 41218208264 | $8.02 | Shop at ECS Tuning | |||||
| 10 | Moulded part column B | 1 | 41218204995 | $5.39 | Shop at ECS Tuning | |||||
| 11 | Molded part f entrance front | 1 | 41218202906 | Shop at ECS Tuning | ||||||
Notes
- ENDED = the part has been discontinued (no longer available).
