Trunk lid/rear window for BMW 3 Series E46 316i (2004)

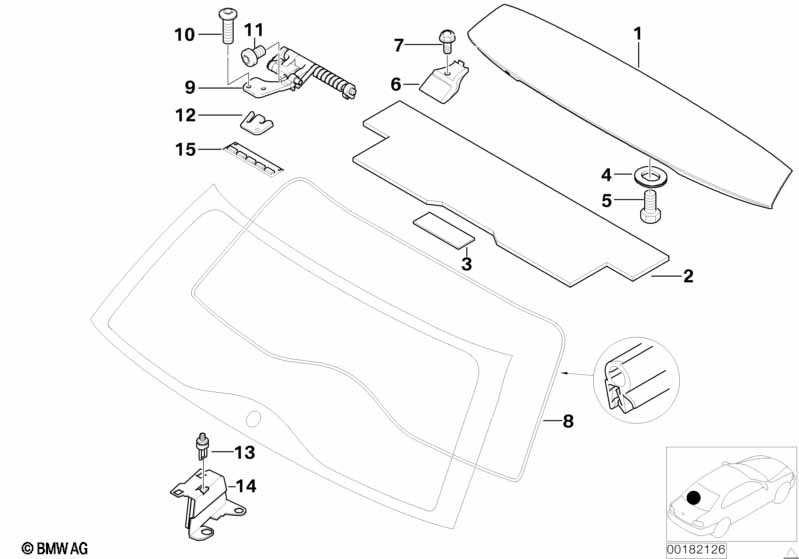

This Trunk lid/rear window technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 316i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Rear spoiler | 1 | 51718235987 | $237.95 | Shop at ECS Tuning | |||||
| 02 | Gasket | 1 | 51718244658 | $16.88 | Shop at ECS Tuning | |||||
| 03 | Cover | 1 | 51717003414 | $3.23 | Shop at ECS Tuning | |||||
| 04 | Bush | D=24MM | 3 | 51717000012 | $0.79 | Shop at ECS Tuning | ||||
| 05 | Hex bolt | M6X10 | 4 | 07119900054 | $0.25 | Shop at ECS Tuning | ||||
| 06 | Clamping bracket left | 1 | 51718232847 | $7.67 | Shop at ECS Tuning | |||||
| 06 | Clamping bracket right | 1 | 51718232848 | $7.67 | Shop at ECS Tuning | |||||
| 08 | sealing | 1 | 51718233431 | $109.90 | Shop at ECS Tuning | |||||
| 09 | Hinge, rear window left | 1 | 51248254015 | $121.28 | Shop at ECS Tuning | |||||
| 09 | Hinge, rear window right | 1 | 51248254016 | $121.28 | Shop at ECS Tuning | |||||
| 10 | Torx-bolt with washer | ISA M8X15 | 4 | 41618226193 | $0.72 | ENDED | Shop at ECS Tuning | |||
| 11 | Torx bolt | ISA M8X1X13 | 2 | 41628264069 | $0.77 | Shop at ECS Tuning | ||||
| 12 | Spacer plate | 1,0MM | X | 51248232875 | $2.08 | Shop at ECS Tuning | ||||
| 13 | Catch bracket, rear window | 1 | 51248218850 | $8.52 | Shop at ECS Tuning | |||||
| 14 | Rear window lock | 1 | 51247840623 | $113.82 | Shop at ECS Tuning | |||||
| 15 | Stop buffer | 1 | 51247032000 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
