Trunk lid hydraulic parts for BMW 5 Series E39 540i (2003)

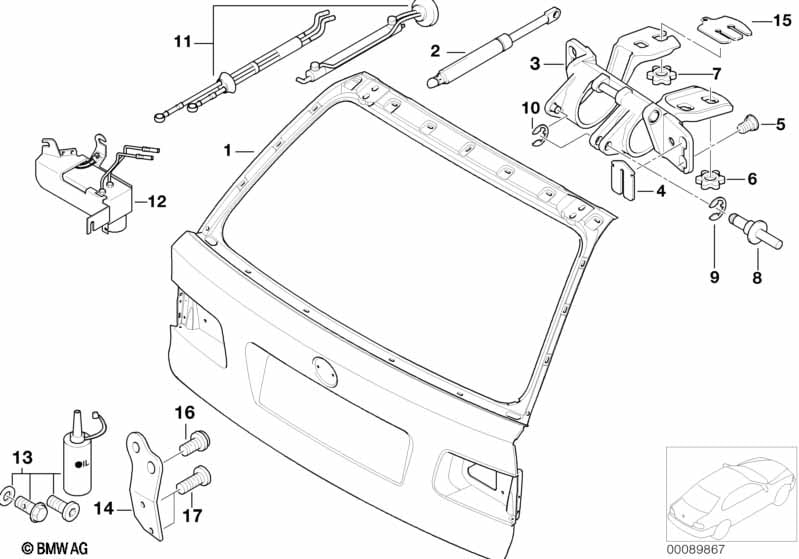

This Trunk lid hydraulic parts technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 540i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Trunk lid | 1 | 41627007396 | $673.07 | Shop at ECS Tuning | |||||
| 02 | Gas pressurized spring | 1600N | 1 | 51248220072 | $67.93 | Shop at ECS Tuning | ||||
| 03 | Left trunk lid hinge | 1 | 41617007403 | $116.74 | Shop at ECS Tuning | |||||
| 03 | Right trunk lid hinge | 1 | 41628227946 | $111.00 | Shop at ECS Tuning | |||||
| 04 | Shim | 1.0MM | X | 41628226060 | $2.00 | Shop at ECS Tuning | ||||
| 05 | Torx-bolt with washer | ISA M8X22 | 8 | 41628199932 | $0.93 | Shop at ECS Tuning | ||||
| 06 | Star-shaped nut | ASA M8 | 4 | 07147203401 | Shop at ECS Tuning | |||||
| 07 | Star-shaped nut | ASA M8 | 4 | 07147203401 | Shop at ECS Tuning | |||||
| 08 | Pin | 1 | 51248205062 | $2.18 | Shop at ECS Tuning | |||||
| only applies to LEFT TRUNK LID HINGE |
||||||||||
| 08 | Double pin | 1 | 51247004890 | $18.45 | Shop at ECS Tuning | |||||
| 09 | Circlip | 6,0 | 2 | 07119901421 | $0.09 | Shop at ECS Tuning | ||||
| 10 | Circlip | 6,0 | 2 | 07119901421 | $0.09 | Shop at ECS Tuning | ||||
| 11 | Hydraulic cylinder | 1 | 51247015853 | $281.73 | ENDED | Shop at ECS Tuning | ||||
| 12 | Hydro unit | 1 | 51247015684 | $663.57 | ENDED | Shop at ECS Tuning | ||||
| 13 | Hollow bolt set | 1 | 51247015854 | $51.06 | Shop at ECS Tuning | |||||
| CONSISTING OF HOLLOW BOLT SCREW PLUG GASKET small oil bottle |
||||||||||
| 14 | Inclination indicator bracket | 1 | 51247004881 | $6.27 | Shop at ECS Tuning | |||||
| 15 | Shim | 1.0MM | X | 51248219000 | $1.85 | Shop at ECS Tuning | ||||
| 16 | Torx bolt | 4,8X13 | 1 | 51418119726 | $0.22 | Shop at ECS Tuning | ||||
| 17 | Screw | TS4X10MM | 2 | 07129907533 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
